Please send RFQ , we will respond immediately.

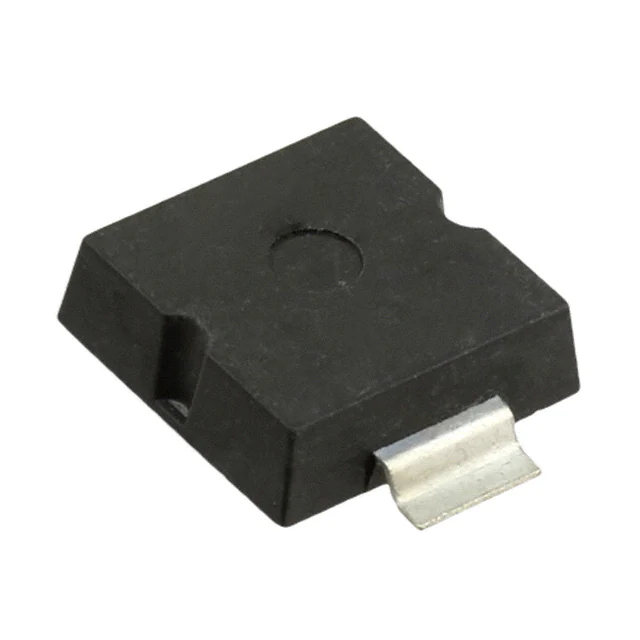

| Part Number | MPLAD6.5KP20AE3 | MPLAD6.5KP22AE3 | MPLAD6.5KP24AE3 | MPLAD6.5KP26AE3 | MPLAD6.5KP28AE3 | MPLAD6.5KP30AE3 | MPLAD6.5KP40AE3 | MPLAD6.5KP20CAE3 | MPLAD6.5KP60AE3 | MPLAD6.5KP70AE3 | MPLAD6.5KP90AE3 | MPLAD6.5KP10AE3 | MPLAD6.5KP120AE3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microchip Technology | Microsemi Corporation |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | - | - | 1 | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 20V | 22V | 24V | 26V | 28V | 30V | 40V | 20V | 60V | 70V | 90V | 10V | 120V |
| Voltage - Breakdown (Min) | 22.2V | 24.4V | 26.7V | 28.9V | 31.1V | 33.3V | 44.4V | 22.2V | 66.7V | 77.8V | 100V | 11.1V | 133V |
| Voltage - Clamping (Max) @ Ipp | 32.4V | 35.5V | 38.9V | 42.1V | 45.5V | 48.4V | 64.5V | 32.4V | 96.8V | 113V | 146V | 17V | 193V |
| Current - Peak Pulse (10/1000µs) | 202A | 183A | 167A | 154A | 143A | 135A | 101A | 202A | 67.4A | 57.5A | 44.5A | 383A | 33.6A |
| Power - Peak Pulse | 6500W (6.5kW) | 6500W (6.5kW) | 6500W (6.5kW) | 6500W (6.5kW) | 6500W (6.5kW) | 6500W (6.5kW) | 6500W (6.5kW) | 6500W (6.5kW) | 6500W (6.5kW) | 6500W (6.5kW) | 6500W (6.5kW) | 6500W (6.5kW) | 6500W (6.5kW) |
| Power Line Protection | No | No | No | No | No | No | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD |
| Supplier Device Package | PLAD | PLAD | PLAD | PLAD | PLAD | PLAD | PLAD | PLAD | PLAD | PLAD | PLAD | PLAD | PLAD |
