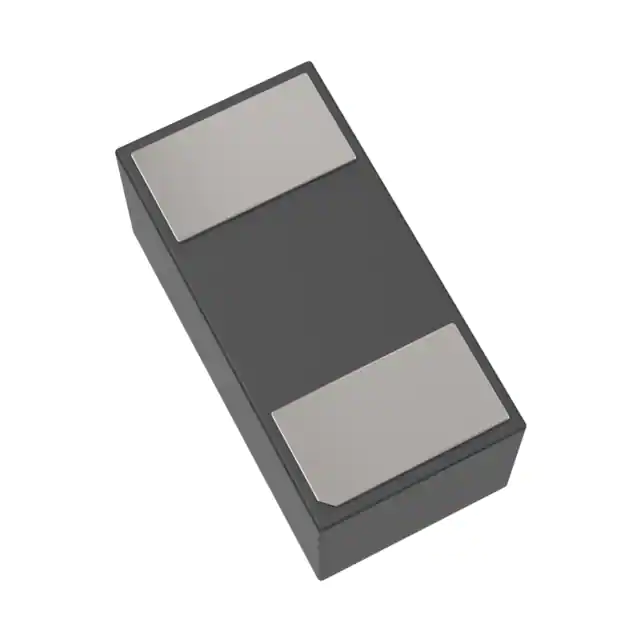

| Part Number | MPL4703-206/TR | MPL4703-406/TR | MPL4700-206/TR |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active |
| Diode Type | PIN - Single | PIN - Single | PIN - Single |
| Voltage - Peak Reverse (Max) | 25V | 25V | 25V |
| Current - Max | - | - | - |
| Capacitance @ Vr, F | 0.3pF @ 10V, 1MHz | 0.3pF @ 10V, 1MHz | 0.15pF @ 10V, 1MHz |
| Resistance @ If, F | 3Ohm @ 10mA, 100MHz | 3Ohm @ 10mA, 1GHz | 2Ohm @ 10mA, 1GHz |
| Power Dissipation (Max) | 10 W | 10 W | 10 W |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Supplier Device Package | 0402 | 0402 | 0402 |
