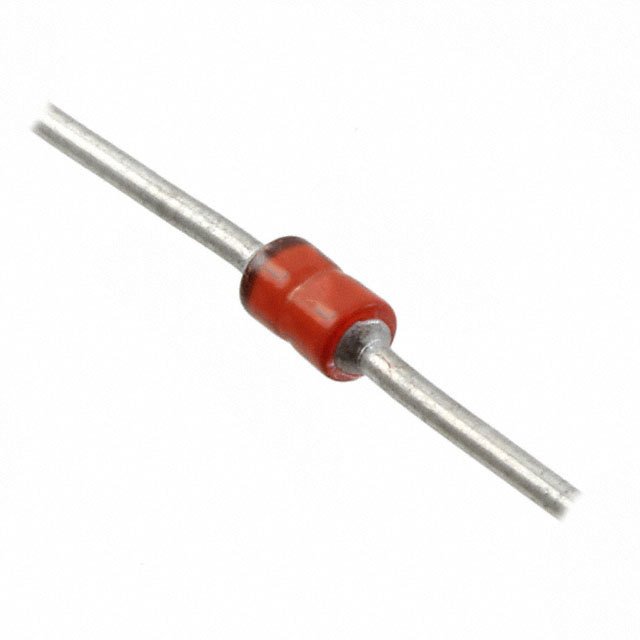

| Part Number | MP4KE7.5CA | MP4KE75CA | MP4KE7.5A |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | MDE Semiconductor Inc |
| Product Status | Active | Active | Active |
| Type | Zener | Zener | Zener |
| Unidirectional Channels | - | - | 1 |
| Bidirectional Channels | 1 | 1 | - |
| Voltage - Reverse Standoff (Typ) | 6.4V | 64.1V | 6.4V |
| Voltage - Breakdown (Min) | 7.13V | 71.3V | 7.13V |
| Voltage - Clamping (Max) @ Ipp | 11.3V | 103V | 11.3V |
| Current - Peak Pulse (10/1000µs) | 35A | 3.9A | 36.3A |
| Power - Peak Pulse | 400W | 400W | 400W |
| Power Line Protection | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO-204AL (DO-41) | DO-204AL (DO-41) | DO-41 |
