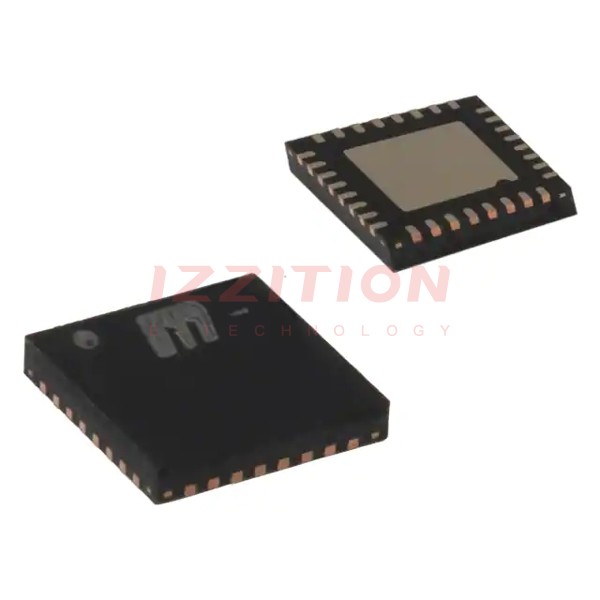

| Part Number | MICRF505YML-TR | MICRF506YML-TR | MICRF507YML-TR | MICRF505BML-TR | MICRF505LYML-TR |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Discontinued at Digi-Key | Active |
| Type | TxRx Only | TxRx Only | TxRx Only | TxRx Only | TxRx Only |
| RF Family/Standard | General ISM < 1GHz | General ISM < 1GHz | General ISM < 1GHz | General ISM < 1GHz | General ISM < 1GHz |
| Protocol | - | - | - | - | - |
| Modulation | FSK | FSK | FSK | FSK | FSK |
| Frequency | 850MHz ~ 950MHz | 410MHz ~ 450MHz | 470MHz ~ 510MHz | 850MHz ~ 950MHz | 850MHz ~ 950MHz |
| Data Rate (Max) | 200kbps | 200kbps | 200kbps | 200kbps | 200kbps |
| Power - Output | 10dBm | 11dBm | 10dBm | 10dBm | 10dBm |
| Sensitivity | -111dBm | -113dBm | -113dBm | -111dBm | -111dBm |
| Memory Size | - | - | - | - | - |
| Serial Interfaces | SPI | SPI | SPI | SPI | SPI |
| GPIO | - | - | - | - | - |
| Voltage - Supply | 2V ~ 2.5V | 2V ~ 2.5V | 2V ~ 2.5V | 2V ~ 2.5V | 2.25V ~ 5.5V |
| Current - Receiving | 8.6mA ~ 13.5mA | 8mA ~ 12mA | 8mA ~ 12mA | 8.6mA ~ 13.5mA | 8.6mA ~ 13.5mA |
| Current - Transmitting | 14mA ~ 28mA | 8mA ~ 21.5mA | 8mA ~ 21.5mA | 14mA ~ 28mA | 14mA ~ 28mA |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) | 32-QFN (5x5) | 32-QFN (5x5) | 32-QFN (5x5) | 32-QFN (5x5) |
