| Part Number | MIC94355-4YCS-TR | MIC94355-GYCS-TR | MIC94355-FYCS-TR | MIC94355-MYCS-TR | MIC94355-SYCS-TR |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V |
| Voltage - Output (Min/Fixed) | 1.2V | 1.8V | 1.5V | 2.8V | 3.3V |
| Voltage - Output (Max) | - | - | - | - | - |
| Voltage Dropout (Max) | 0.2V @ 500mA | 0.2V @ 500mA | 0.2V @ 500mA | 0.2V @ 500mA | 0.2V @ 500mA |
| Current - Output | 500mA | 500mA | 500mA | 500mA | 500mA |
| Current - Quiescent (Iq) | 250 µA | 250 µA | 250 µA | 250 µA | 250 µA |
| Current - Supply (Max) | - | - | - | - | - |
| PSRR | 85dB ~ 50dB (100Hz ~ 5MHz) | 85dB ~ 50dB (100Hz ~ 5MHz) | 85dB ~ 50dB (100Hz ~ 5MHz) | 85dB ~ 50dB (100Hz ~ 5MHz) | 85dB ~ 50dB (100Hz ~ 5MHz) |
| Control Features | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

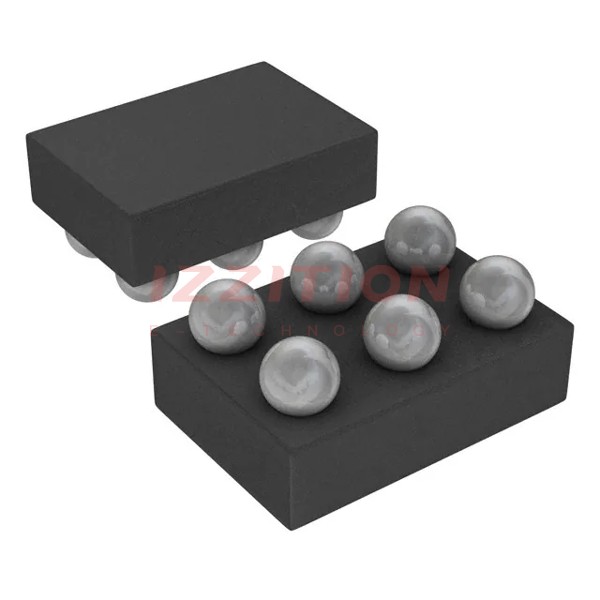

| Package / Case | 6-UFBGA, WLCSP | 6-UFBGA, WLCSP | 6-UFBGA, WLCSP | 6-UFBGA, WLCSP | 6-UFBGA, WLCSP |
| Supplier Device Package | 6-WLCSP (0.84x1.32) | 6-WLCSP (0.84x1.32) | 6-WLCSP (0.84x1.32) | 6-WLCSP (0.84x1.32) | 6-WLCSP (0.84x1.32) |
