| Part Number | MIC94310-JYCS-TR | MIC94310-SYCS-TR | MIC94310-PYCS-TR | MIC94310-MYCS-TR | MIC94310-NYCS-TR | MIC94310-4YCS-TR | MIC94310-DYCS-TR | MIC94310-FYCS-TR | MIC94310-GYCS-TR |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V |
| Voltage - Output (Min/Fixed) | 2.5V | 3.3V | 3V | 2.8V | 2.85V | 1.2V | 1.85V | 1.5V | 1.8V |
| Voltage - Output (Max) | - | - | - | - | - | - | - | - | - |
| Voltage Dropout (Max) | 0.1V @ 200mA | 0.1V @ 200mA | 0.1V @ 200mA | 0.1V @ 200mA | 0.1V @ 200mA | 0.1V @ 200mA | 0.1V @ 200mA | 0.1V @ 200mA | 0.1V @ 200mA |
| Current - Output | 200mA | 200mA | 200mA | 200mA | 200mA | 200mA | 200mA | 200mA | 200mA |
| Current - Quiescent (Iq) | 250 µA | 250 µA | 250 µA | 250 µA | 250 µA | 250 µA | 250 µA | 250 µA | 250 µA |
| Current - Supply (Max) | - | - | - | - | - | - | - | - | - |
| PSRR | 85dB ~ 50dB (100Hz ~ 10MHz) | 85dB ~ 50dB (100Hz ~ 10MHz) | 85dB ~ 50dB (100Hz ~ 10MHz) | 85dB ~ 50dB (100Hz ~ 10MHz) | 85dB ~ 50dB (100Hz ~ 10MHz) | 85dB ~ 50dB (100Hz ~ 10MHz) | 85dB ~ 50dB (100Hz ~ 10MHz) | 85dB ~ 50dB (100Hz ~ 10MHz) | 85dB ~ 50dB (100Hz ~ 10MHz) |
| Control Features | Enable | Enable | Enable | Enable | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

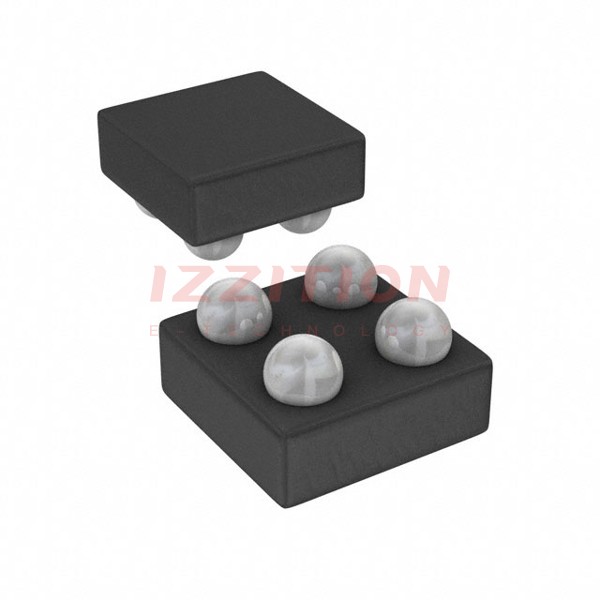

| Package / Case | 4-UFBGA, WLCSP | 4-UFBGA, WLCSP | 4-UFBGA, WLCSP | 4-UFBGA, WLCSP | 4-UFBGA, WLCSP | 4-UFBGA, WLCSP | 4-UFBGA, WLCSP | 4-UFBGA, WLCSP | 4-UFBGA, WLCSP |
| Supplier Device Package | 4-WLCSP (0.88x0.88) | 4-WLCSP (0.88x0.88) | 4-WLCSP (0.88x0.88) | 4-WLCSP (0.88x0.88) | 4-WLCSP (0.88x0.88) | 4-WLCSP (0.88x0.88) | 4-WLCSP (0.88x0.88) | 4-WLCSP (0.88x0.88) | 4-WLCSP (0.88x0.88) |
