| Part Number | MIC94310-FYMT-T5 | MIC94310-FYMT-TR | MIC94310-PYMT-T5 | MIC94310-SYMT-T5 | MIC94310-GYMT-T5 | MIC94310-JYMT-T5 | MIC94310-LYMT-T5 | MIC94310-MYMT-T5 | MIC94310-NYMT-T5 | MIC94310-4YMT-T5 | MIC94310-DYMT-T5 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Discontinued at Digi-Key | Active | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Active | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V |
| Voltage - Output (Min/Fixed) | 1.5V | 1.5V | 3V | 3.3V | 1.8V | 2.5V | 2.7V | 2.8V | 2.85V | 1.2V | 1.85V |
| Voltage - Output (Max) | - | - | - | - | - | - | - | - | - | - | - |
| Voltage Dropout (Max) | 0.1V @ 200mA | 0.1V @ 200mA | 0.1V @ 200mA | 0.1V @ 200mA | 0.1V @ 200mA | 0.1V @ 200mA | 0.1V @ 200mA | 0.1V @ 200mA | 0.1V @ 200mA | 0.1V @ 200mA | 0.1V @ 200mA |
| Current - Output | 200mA | 200mA | 200mA | 200mA | 200mA | 200mA | 200mA | 200mA | 200mA | 200mA | 200mA |
| Current - Quiescent (Iq) | 250 µA | 250 µA | 250 µA | 250 µA | 250 µA | 250 µA | 250 µA | 250 µA | 250 µA | 250 µA | 250 µA |
| Current - Supply (Max) | - | - | - | - | - | - | - | - | - | - | - |
| PSRR | 85dB ~ 50dB (100Hz ~ 10MHz) | 85dB ~ 50dB (100Hz ~ 10MHz) | 85dB ~ 50dB (100Hz ~ 10MHz) | 85dB ~ 50dB (100Hz ~ 10MHz) | 85dB ~ 50dB (100Hz ~ 10MHz) | 85dB ~ 50dB (100Hz ~ 10MHz) | 85dB ~ 50dB (100Hz ~ 10MHz) | 85dB ~ 50dB (100Hz ~ 10MHz) | 85dB ~ 50dB (100Hz ~ 10MHz) | 85dB ~ 50dB (100Hz ~ 10MHz) | 85dB ~ 50dB (100Hz ~ 10MHz) |
| Control Features | Enable | Enable | Enable | Enable | Enable | Enable | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

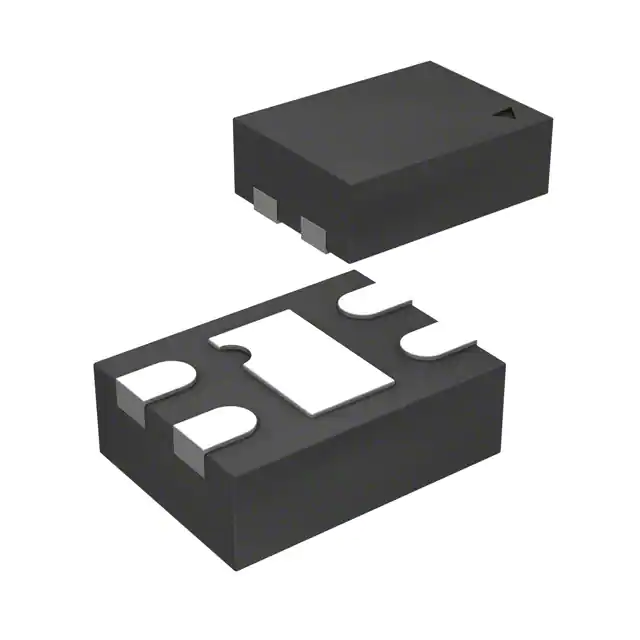

| Package / Case | 4-UFDFN Exposed Pad, 4-TMLF® | 4-UFDFN Exposed Pad, 4-TMLF® | 4-UFDFN Exposed Pad | 4-UFDFN Exposed Pad | 4-UFDFN Exposed Pad, 4-TMLF® | 4-UFDFN Exposed Pad, 4-TMLF® | 4-UFDFN Exposed Pad | 4-UFDFN Exposed Pad | 4-UFDFN Exposed Pad | 4-UDFN Exposed Pad, 4-TMLF® | 4-UDFN Exposed Pad, 4-TMLF® |
| Supplier Device Package | 4-TMLF® (1.2x1.6) | 4-TMLF® (1.2x1.6) | 4-TDFN (1.2x1.6) | 4-TDFN (1.2x1.6) | 4-TMLF® (1.2x1.6) | 4-TMLF® (1.2x1.6) | 4-TDFN (1.2x1.6) | 4-TDFN (1.2x1.6) | 4-TDFN (1.2x1.6) | 4-TDFN (1.2x1.6) | 4-TMLF® (1.2x1.6) |
