Please send RFQ , we will respond immediately.
| Part Number | MIC94165YCS-TR | MIC94161YCS-TR | MIC94162YCS-TR | MIC94163YCS-TR | MIC94164YCS-TR |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active |
| Switch Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Output Configuration | High Side | High Side | High Side | High Side | High Side |
| Output Type | P-Channel | P-Channel | P-Channel | P-Channel | P-Channel |
| Interface | On/Off | On/Off | On/Off | On/Off | On/Off |
| Voltage - Load | 1.7V ~ 5.5V | 1.7V ~ 5.5V | 1.7V ~ 5.5V | 1.7V ~ 5.5V | 1.7V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | - | - | - | - | - |
| Current - Output (Max) | 3A | 3A | 3A | 3A | 3A |
| Rds On (Typ) | 14.5mOhm | 14.5mOhm | 14.5mOhm | 14.5mOhm | 14.5mOhm |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| Features | Slew Rate Controlled | Slew Rate Controlled | Slew Rate Controlled | - | Load Discharge, Slew Rate Controlled |
| Fault Protection | Reverse Current | Reverse Current | Reverse Current | Reverse Current | Reverse Current |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

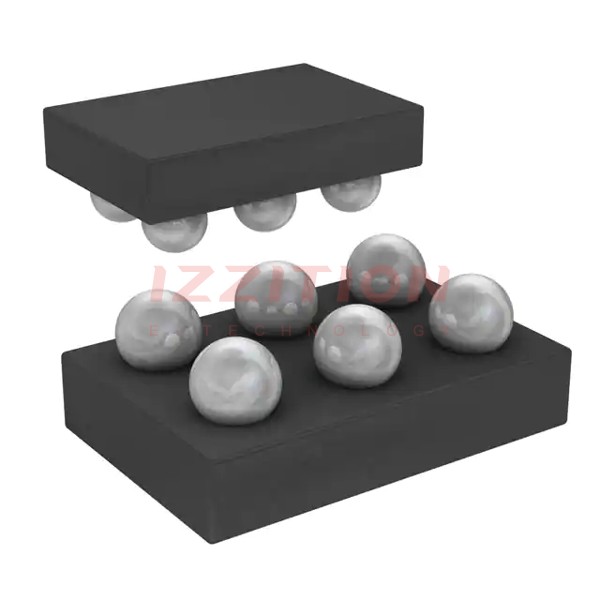

| Supplier Device Package | 6-WLCSP (1x1.5) | 6-WLCSP (1x1.5) | 6-WLCSP (1.5x1.1) | 6-WLCSP (1x1.5) | 6-WLCSP (1x1.5) |
| Package / Case | 6-WFBGA, WLCSP | 6-WFBGA, WLCSP | 6-WFBGA, WLCSP | 6-WFBGA, WLCSP | 6-WFBGA, WLCSP |
