Please send RFQ , we will respond immediately.

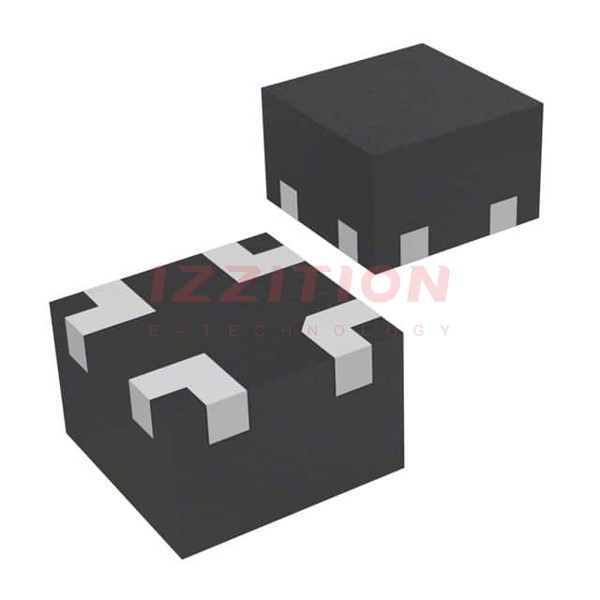

| Part Number | MIC94085YFT-TR | MIC94080YFT-TR | MIC94081YFT-TR | MIC94082YFT-TR | MIC94083YFT-TR | MIC94084YFT-TR |
|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active |
| Switch Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Output Configuration | High Side | High Side | High Side | High Side | High Side | High Side |
| Output Type | P-Channel | P-Channel | P-Channel | P-Channel | P-Channel | P-Channel |
| Interface | On/Off | On/Off | On/Off | On/Off | On/Off | On/Off |
| Voltage - Load | 1.7V ~ 5.5V | 1.7V ~ 5.5V | 1.7V ~ 5.5V | 1.7V ~ 5.5V | 1.7V ~ 5.5V | 1.7V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required | Not Required | Not Required | Not Required | Not Required |
| Current - Output (Max) | 2A | 2A | 2A | 2A | 2A | 2A |
| Rds On (Typ) | 67mOhm | 67mOhm | 67mOhm | 67mOhm | 67mOhm | 67mOhm |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| Features | Load Discharge, Slew Rate Controlled | - | Load Discharge | Slew Rate Controlled | Load Discharge, Slew Rate Controlled | Slew Rate Controlled |
| Fault Protection | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 4-TMLF® (0.85x0.85) | 4-TMLF® (0.85x0.85) | 4-TMLF® (0.85x0.85) | 4-TMLF® (0.85x0.85) | 4-TMLF® (0.85x0.85) | 4-TMLF® (0.85x0.85) |
| Package / Case | 4-UFDFN, 4-TMLF® | 4-UFDFN, 4-TMLF® | 4-UFDFN, 4-TMLF® | 4-UFDFN, 4-TMLF® | 4-UFDFN, 4-TMLF® | 4-UFDFN, 4-TMLF® |
