| Part Number | MIC94040YFL-TR | MIC94042YFL-TR | MIC94043YFL-TR | MIC94041YFL-TR | MIC94044YFL-TR | MIC94045YFL-TR |
|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active |
| Switch Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Output Configuration | High Side | High Side | High Side | High Side | High Side | High Side |
| Output Type | P-Channel | P-Channel | P-Channel | P-Channel | P-Channel | P-Channel |
| Interface | On/Off | On/Off | On/Off | On/Off | On/Off | On/Off |
| Voltage - Load | 1.7V ~ 5.5V | 1.7V ~ 5.5V | 1.7V ~ 5.5V | 1.7V ~ 5.5V | 1.7V ~ 5.5V | 1.7V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required | Not Required | Not Required | Not Required | Not Required |
| Current - Output (Max) | 3A | 3A | 3A | 3A | 3A | 3A |
| Rds On (Typ) | 28mOhm | 28mOhm | 28mOhm | 28mOhm | 28mOhm | 28mOhm |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| Features | - | Slew Rate Controlled | Load Discharge, Slew Rate Controlled | Load Discharge | Slew Rate Controlled | Load Discharge, Slew Rate Controlled |
| Fault Protection | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

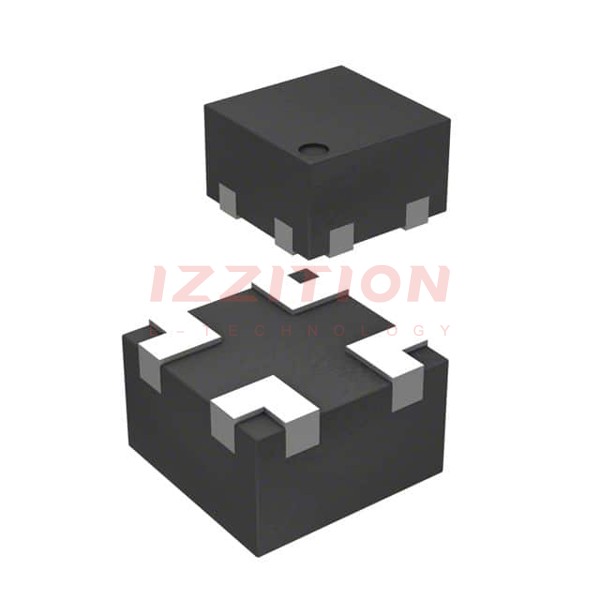

| Supplier Device Package | 4-MLF® (1.2x1.2) | 4-MLF® (1.2x1.2) | 4-MLF® (1.2x1.2) | 4-MLF® (1.2x1.2) | 4-MLF® (1.2x1.2) | 4-MLF® (1.2x1.2) |
| Package / Case | 4-WQFN, 4-MLF® | 4-WQFN, 4-MLF® | 4-WQFN, 4-MLF® | 4-WQFN, 4-MLF® | 4-WDFN, 4-MLF® | 4-WDFN, 4-MLF® |
