Please send RFQ , we will respond immediately.

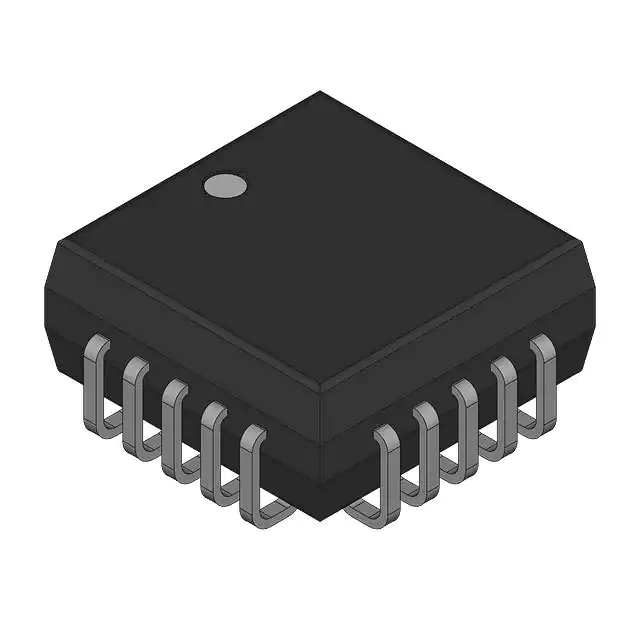

| Part Number | MIC59P60BV | MIC59P50BV | MIC59P60BN |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Obsolete | Obsolete |
| Switch Type | Latched Driver | Latched Driver | Latched Driver |
| Number of Outputs | 8 | 8 | 8 |
| Ratio - Input:Output | 1:8 | 1:1 | 1:8 |
| Output Configuration | Low Side | Low Side | Low Side |
| Output Type | Bipolar | Bipolar | Bipolar |
| Interface | Strobe, Serial | Strobe, Parallel | Strobe, Serial |
| Voltage - Load | 15V (Max) | 15V (Max) | 15V (Max) |
| Voltage - Supply (Vcc/Vdd) | - | - | - |
| Current - Output (Max) | 500mA | 500mA | 500mA |
| Rds On (Typ) | - | - | - |
| Input Type | - | - | - |
| Features | Status Flag | Status Flag | Status Flag |
| Fault Protection | Over Temperature, UVLO | Over Temperature, UVLO | Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Through Hole |
| Supplier Device Package | 20-PLCC (9x9) | 28-PLCC (11.48x11.48) | 20-DIP |
| Package / Case | 20-LCC (J-Lead) | 28-LCC (J-Lead) | 20-DIP (0.300", 7.62mm) |
