Please send RFQ , we will respond immediately.

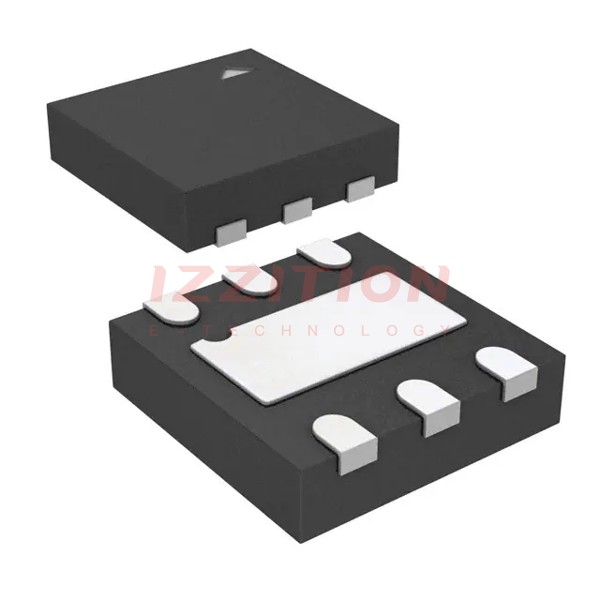

| Part Number | MIC5528-3.3YMX-TR | MIC5528-3.3YMT-TR | MIC5528-3.3YMX-T5 |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Discontinued at Digi-Key |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 3.3V | 3.3V | 3.3V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | 0.5V @ 500mA | 0.5V @ 500mA | 0.5V @ 500mA |
| Current - Output | 500mA | 500mA | 500mA |
| Current - Quiescent (Iq) | 55 µA | 55 µA | 55 µA |
| Current - Supply (Max) | 65 µA | 65 µA | 65 µA |
| PSRR | 70dB ~ 60dB (100Hz ~ 1kHz) | 70dB ~ 60dB (100Hz ~ 1kHz) | 70dB ~ 60dB (100Hz ~ 1kHz) |
| Control Features | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-XFDFN Exposed Pad | 6-UFDFN Exposed Pad | 6-XFDFN Exposed Pad |
| Supplier Device Package | 6-XTDFN (1.2x1.2) | 6-TDFN (1.2x1.2) | 6-TDFN (1.2x1.2) |
