| Part Number | MIC5399-SMYMX-T5 | MIC5399-SMYMX-TR | MIC5399-SSYMX-T5 | MIC5399-GMYMX-T5 | MIC5399-MMYMX-T5 | MIC5399-SGYMX-T5 |
|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 2 | 2 | 2 | 2 | 2 | 2 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 2.8V, 3.3V | 2.8V, 3.3V | 3.3V, 3.3V | 1.8V, 2.8V | 2.8V, 2.8V | 1.8V, 3.3V |
| Voltage - Output (Max) | - | - | - | - | - | - |
| Voltage Dropout (Max) | 0.38V @ 300mA, 0.38V @ 300mA | 0.38V @ 300mA, 0.38V @ 300mA | 0.38V @ 300mA, 0.38V @ 300mA | 0.38V @ 300mA, 0.38V @ 300mA | 0.38V @ 300mA, 0.38V @ 300mA | 0.38V @ 300mA, 0.38V @ 300mA |
| Current - Output | 300mA, 300mA | 300mA, 300mA | 300mA, 300mA | 300mA, 300mA | 300mA, 300mA | 300mA, 300mA |
| Current - Quiescent (Iq) | 55 µA | 55 µA | 55 µA | 55 µA | 55 µA | 55 µA |
| Current - Supply (Max) | 130 µA | 130 µA | 130 µA | 130 µA | 130 µA | 130 µA |
| PSRR | 60dB (1kHz) | 60dB (1kHz) | 60dB (1kHz) | 60dB (1kHz) | 60dB (1kHz) | 60dB (1kHz) |
| Control Features | Enable | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

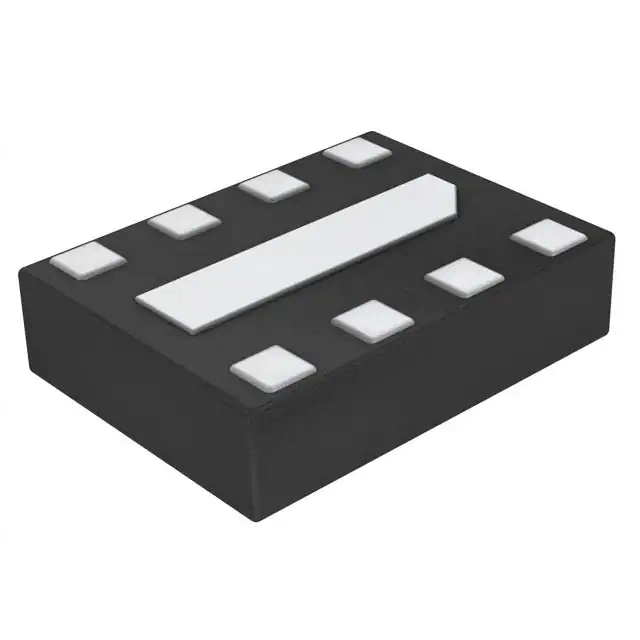

| Package / Case | 8-XFDFN Exposed Pad | 8-XFDFN Exposed Pad | 8-XFDFN Exposed Pad | 8-XFDFN Exposed Pad | 8-XFDFN Exposed Pad | 8-XFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (1.2x1.6) | 8-DFN (1.2x1.6) | 8-DFN (1.2x1.6) | 8-DFN (1.2x1.6) | 8-DFN (1.2x1.6) | 8-DFN (1.2x1.6) |
