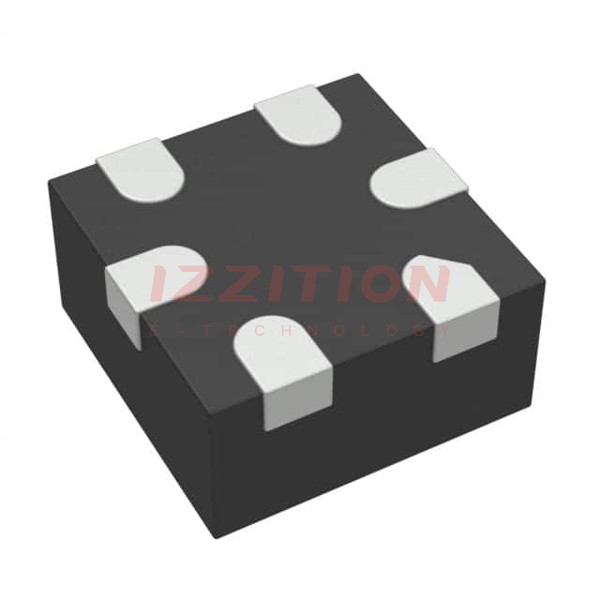

| Part Number | MIC5380-PPYFT-TR | MIC5381-PPYFT-TR |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Active |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 2 | 2 |
| Voltage - Input (Max) | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 3V, 3V | 3V, 3V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | 0.31V @ 150mA, 0.31V @ 150mA | 0.31V @ 150mA, 0.31V @ 150mA |
| Current - Output | 150mA, 150mA | 150mA, 150mA |
| Current - Quiescent (Iq) | 45 µA | 45 µA |
| Current - Supply (Max) | 85 µA | 85 µA |
| PSRR | 60dB (1kHz) | 60dB (1kHz) |
| Control Features | Enable | Enable |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 6-UFQFN, 6-TMLF® | 6-UFQFN, 6-TMLF® |
| Supplier Device Package | 6-TMLF® (1x1) | 6-TMLF® (1x1) |
