| Part Number | MIC5366-3.0YMT-TZ | MIC5366-3.3YMT-TZ | MIC5366-3.1YMT-TZ | MIC5365-3.0YMT-TZ | MIC5366-1.0YMT-TZ | MIC5366-2.0YMT-TZ | MIC5366-3.0YMT-TR |
|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Discontinued at Digi-Key |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 3V | 3.3V | 3.1V | 3V | 1V | 2V | 3V |
| Voltage - Output (Max) | - | - | - | - | - | - | - |
| Voltage Dropout (Max) | 0.31V @ 150mA | 0.31V @ 150mA | 0.31V @ 150mA | 0.31V @ 150mA | 0.38V @ 150mA | 0.38V @ 150mA | 0.31V @ 150mA |
| Current - Output | 150mA | 150mA | 150mA | 150mA | 150mA | 150mA | 150mA |
| Current - Quiescent (Iq) | 39 µA | 39 µA | 39 µA | 39 µA | 39 µA | 39 µA | 39 µA |
| Current - Supply (Max) | - | - | - | - | - | - | - |
| PSRR | 80dB ~ 65dB (1kHz ~ 10kHz) | 80dB ~ 65dB (1kHz ~ 10kHz) | 80dB ~ 65dB (1kHz ~ 10kHz) | 80dB ~ 65dB (1kHz ~ 10kHz) | 80dB ~ 65dB (1kHz ~ 10kHz) | 80dB ~ 65dB (1kHz ~ 10kHz) | 80dB ~ 65dB (1kHz ~ 10kHz) |
| Control Features | Enable | Enable | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

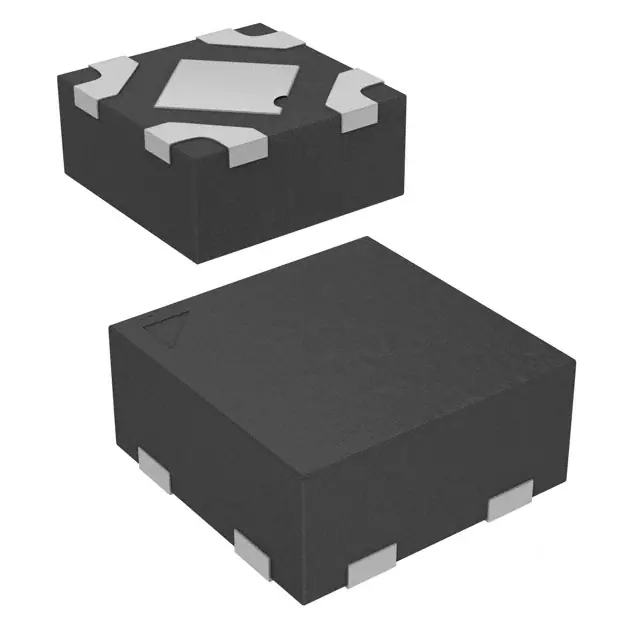

| Package / Case | 4-UDFN Exposed Pad, 4-TMLF® | 4-UDFN Exposed Pad, 4-TMLF® | 4-UDFN Exposed Pad, 4-TMLF® | 4-UDFN Exposed Pad, 4-TMLF® | 4-UDFN Exposed Pad, 4-TMLF® | 4-UDFN Exposed Pad, 4-TMLF® | 4-UDFN Exposed Pad, 4-TMLF® |
| Supplier Device Package | 4-TMLF® (1x1) | 4-TMLF® (1x1) | 4-TMLF® (1x1) | 4-TMLF® (1x1) | 4-TMLF® (1x1) | 4-TMLF® (1x1) | 4-TMLF® (1x1) |
