Please send RFQ , we will respond immediately.

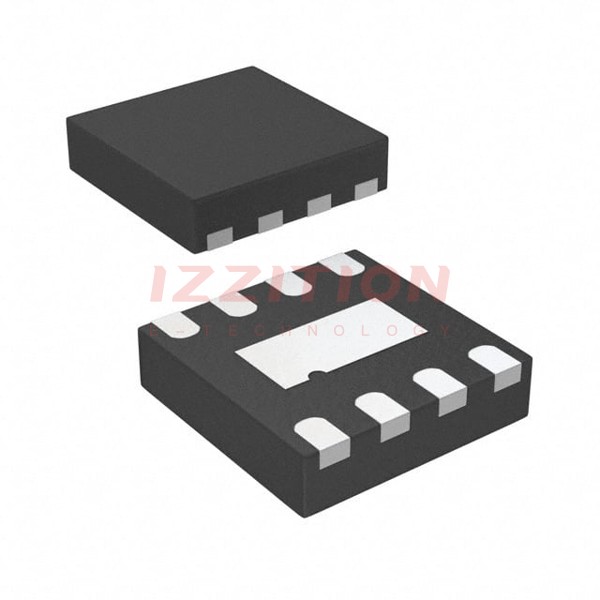

| Part Number | MIC5350-MGYMT-TR | MIC5350-SGYMT-TR | MIC5350-MMYMT-TR | MIC5350-PGYMT-TR |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 2 | 2 | 2 | 2 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 2.8V, 1.8V | 3.3V, 1.8V | 2.8V, 2.8V | 3V, 1.8V |
| Voltage - Output (Max) | - | - | - | - |
| Voltage Dropout (Max) | 0.2V @ 300mA, 0.3V @ 500mA | 0.2V @ 300mA, 0.3V @ 500mA | 0.2V @ 300mA, 0.3V @ 500mA | 0.2V @ 300mA, 0.3V @ 500mA |
| Current - Output | 300mA, 500mA | 300mA, 500mA | 300mA, 500mA | 300mA, 500mA |
| Current - Quiescent (Iq) | 175 µA | 175 µA | 175 µA | 175 µA |
| Current - Supply (Max) | 240 µA | 240 µA | 240 µA | 240 µA |
| PSRR | 50dB ~ 35dB (1kHz ~ 20kHz) | 50dB ~ 35dB (1kHz ~ 20kHz) | 50dB ~ 35dB (1kHz ~ 20kHz) | 50dB ~ 35dB (1kHz ~ 20kHz) |
| Control Features | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-UFDFN Exposed Pad, 8-TMLF® | 8-UFDFN Exposed Pad, 8-TMLF® | 8-UFDFN Exposed Pad, 8-TMLF® | 8-UFDFN Exposed Pad, 8-TMLF® |
| Supplier Device Package | 8-TMLF® (2x2) | 8-TMLF® (2x2) | 8-TMLF® (2x2) | 8-TMLF® (2x2) |
