| Part Number | MIC5333-PNYMT-TR | MIC5333-PPYMT-TR | MIC5335-PNYMT-TR | MIC5331-PNYMT-TR | MIC5332-PNYMT-TR | MIC5333-MNYMT-TR | MIC5333-NNYMT-TR | MIC5333-PMYMT-TR |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 2.85V, 3V | 3V, 3V | 2.85V, 3V | 2.85V, 3V | 2.85V, 3V | 2.8V, 2.85V | 2.85V, 2.85V | 2.8V, 3V |
| Voltage - Output (Max) | - | - | - | - | - | - | - | - |
| Voltage Dropout (Max) | 0.24V @ 300mA, 0.24V @ 300mA | 0.24V @ 300mA, 0.24V @ 300mA | 0.2V @ 300mA, 0.2V @ 300mA | 0.24V @ 300mA, 0.24V @ 300mA | 0.24V @ 300mA, 0.24V @ 300mA | 0.24V @ 300mA, 0.24V @ 300mA | 0.24V @ 300mA, 0.24V @ 300mA | 0.24V @ 300mA, 0.24V @ 300mA |
| Current - Output | 300mA, 300mA | 300mA, 300mA | 300mA, 300mA | 300mA, 300mA | 300mA, 300mA | 300mA, 300mA | 300mA, 300mA | 300mA, 300mA |
| Current - Quiescent (Iq) | 50 µA | 50 µA | 125 µA | 50 µA | 50 µA | 50 µA | 50 µA | 50 µA |
| Current - Supply (Max) | 75 µA | 75 µA | 220 µA | 75 µA | 75 µA | 75 µA | 75 µA | 75 µA |
| PSRR | 65dB ~ 45dB (1kHz ~ 20kHz) | 65dB ~ 45dB (1kHz ~ 20kHz) | 65dB ~ 45dB (1kHz ~ 20kHz) | 65dB ~ 45dB (1kHz ~ 20kHz) | 65dB ~ 45dB (1kHz ~ 20kHz) | 65dB ~ 45dB (1kHz ~ 20kHz) | 65dB ~ 45dB (1kHz ~ 20kHz) | 65dB ~ 45dB (1kHz ~ 20kHz) |
| Control Features | Enable, Power On Reset | Enable, Power On Reset | Enable | Enable | Enable, Power On Reset | Enable, Power On Reset | Enable, Power On Reset | Enable, Power On Reset |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

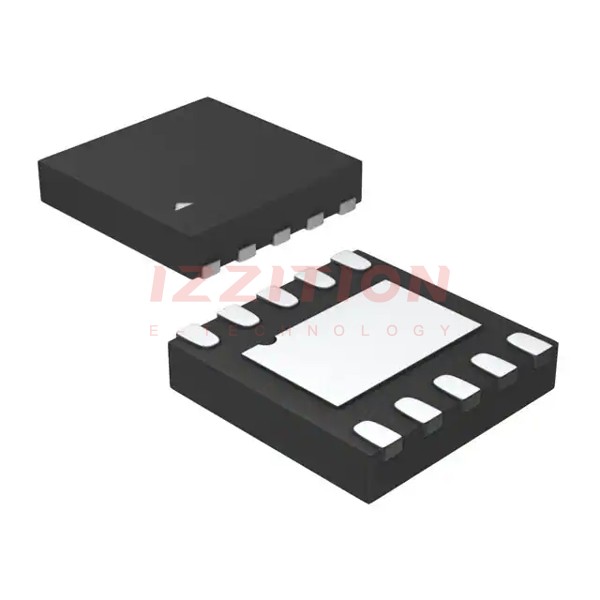

| Package / Case | 10-UFDFN Exposed Pad, 10-TMLF® | 10-UFDFN Exposed Pad, 10-TMLF® | 6-UFDFN Exposed Pad, 6-TMLF® | 8-VFDFN Exposed Pad, 8-MLF® | 8-VFDFN Exposed Pad, 8-MLF® | 10-UFDFN Exposed Pad, 10-TMLF® | 10-UFDFN Exposed Pad, 10-TMLF® | 10-UFDFN Exposed Pad, 10-TMLF® |
| Supplier Device Package | 10-TMLF® (2.5x2.5) | 10-TMLF® (2.5x2.5) | 6-TMLF® (1.6x1.6) | 8-MLF® (2x2) | 8-MLF® (2x2) | 10-TMLF® (2.5x2.5) | 10-TMLF® (2.5x2.5) | 10-TMLF® (2.5x2.5) |
