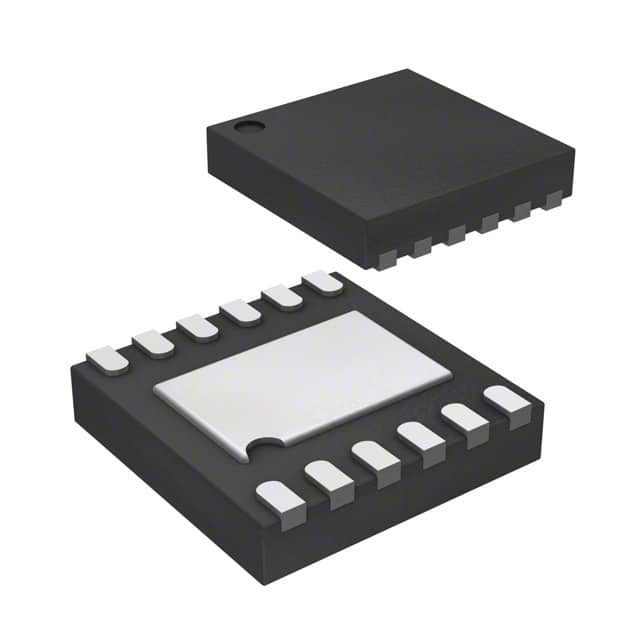

| Part Number | MIC5314-G4YMT-TR | MIC5314-GGYMT-TR | MIC5313-G4YMT-TR | MIC5314-F4YMT-TR |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 2 | 2 | 2 | 2 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.2V, 1.8V | 1.8V, 1.8V | 1.2V, 1.8V | 1.2V, 1.5V |
| Voltage - Output (Max) | - | - | - | - |
| Voltage Dropout (Max) | 0.2V @ 300mA, 0.2V @ 300mA | 0.2V @ 300mA, 0.2V @ 300mA | 0.2V @ 300mA, 0.2V @ 300mA | 0.2V @ 300mA, 0.2V @ 300mA |
| Current - Output | 300mA, 300mA | 300mA, 300mA | 300mA, 300mA | 300mA, 300mA |
| Current - Quiescent (Iq) | 12 µA | 12 µA | 12 µA | 12 µA |
| Current - Supply (Max) | - | - | - | - |
| PSRR | 65dB ~ 40dB (1kHz ~ 20kHz) | 65dB ~ 40dB (1kHz ~ 20kHz) | 65dB ~ 40dB (1kHz ~ 20kHz) | 65dB ~ 40dB (1kHz ~ 20kHz) |
| Control Features | Enable, Power On Reset | Enable, Power On Reset | Enable | Enable, Power On Reset |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 12-UFDFN Exposed Pad, 12-TMLF® | 12-UFDFN Exposed Pad, 12-TMLF® | 10-UFDFN, 10-TMLF® | 12-UFDFN Exposed Pad, 12-TMLF® |
| Supplier Device Package | 12-TMLF® (2.5x2.5) | 12-TMLF® (2.5x2.5) | 10-TMLF® (2x2) | 12-TMLF® (2.5x2.5) |
