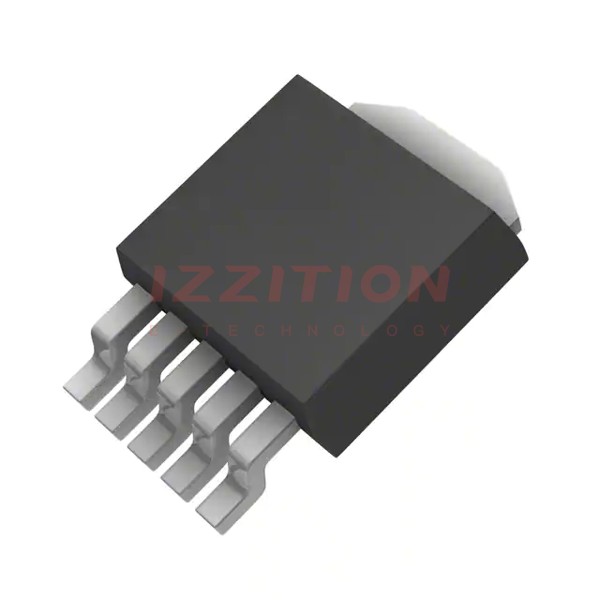

| Part Number | MIC5295-3.3YD-TR | MIC5295-3.0YD-TR |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Active |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 1 | 1 |
| Voltage - Input (Max) | 24V | 24V |
| Voltage - Output (Min/Fixed) | 3.3V | 3V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | 0.5V @ 150mA | 0.5V @ 150mA |
| Current - Output | 150mA | 150mA |
| Current - Quiescent (Iq) | 35 µA | 35 µA |
| Current - Supply (Max) | 4 mA | 4 mA |
| PSRR | 50dB (1kHz) | 50dB (1kHz) |
| Control Features | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | TO-252-6, DPak (5 Leads + Tab) | TO-252-6, DPak (5 Leads + Tab) |
| Supplier Device Package | TO-252-5 | TO-252-5 |
