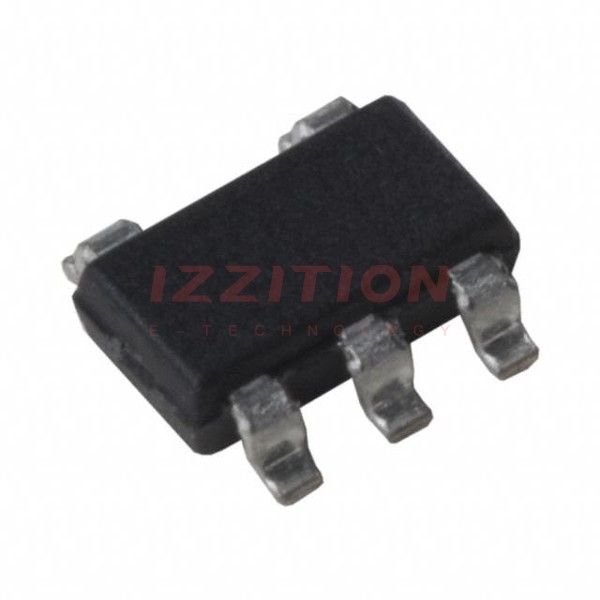

| Part Number | MIC5255-2.9YM5-TR | MIC5256-2.9YM5-TR | MIC5255-2.5YM5-TR | MIC5255-2.6YM5-TR | MIC5255-2.7YM5-TR | MIC5255-2.8YM5-TR | MIC5255-2.9BM5-TR | MIC5255-2.9YD5-TR |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Discontinued at Digi-Key | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 6V | 6V | 6V | 6V | 6V | 6V | 6V | 6V |
| Voltage - Output (Min/Fixed) | 2.9V | 2.9V | 2.5V | 2.6V | 2.7V | 2.8V | 2.9V | 2.9V |
| Voltage - Output (Max) | - | - | - | - | - | - | - | - |
| Voltage Dropout (Max) | 0.25V @ 150mA | 0.25V @ 150mA | 0.25V @ 150mA | 0.25V @ 150mA | 0.25V @ 150mA | 0.25V @ 150mA | 0.25V @ 150mA | 0.25V @ 150mA |
| Current - Output | 150mA | 150mA | 150mA | 150mA | 150mA | 150mA | 150mA | 150mA |
| Current - Quiescent (Iq) | 150 µA | 150 µA | 150 µA | 150 µA | 150 µA | 150 µA | 150 µA | 150 µA |
| Current - Supply (Max) | - | - | - | - | - | - | - | - |
| PSRR | 60dB ~ 50dB (10Hz ~ 10kHz) | 60dB ~ 45dB (10Hz ~ 10kHz) | 60dB ~ 50dB (10Hz ~ 10kHz) | 60dB ~ 50dB (10Hz ~ 10kHz) | 60dB ~ 50dB (10Hz ~ 10kHz) | 60dB ~ 50dB (10Hz ~ 10kHz) | 60dB ~ 50dB (10Hz ~ 10kHz) | 60dB ~ 50dB (10Hz ~ 10kHz) |
| Control Features | Enable | Enable | Enable | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 | TSOT-23-5 |
