| Part Number | MIC5245-3.0YM5-TR | MIC5245-3.3YM5-TR | MIC5245-3.1YM5-TR | MIC5245-3.2YM5-TR | MIC5245-3.0BM5-TR |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Discontinued at Digi-Key |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 6V | 6V | 6V | 6V | 6V |
| Voltage - Output (Min/Fixed) | 3V | 3.3V | 3.1V | 3.2V | 3V |
| Voltage - Output (Max) | - | - | - | - | - |
| Voltage Dropout (Max) | 0.25V @ 150mA | 0.25V @ 150mA | 0.25V @ 150mA | 0.25V @ 150mA | 0.25V @ 150mA |
| Current - Output | 150mA | 150mA | 150mA | 150mA | 150mA |
| Current - Quiescent (Iq) | 150 µA | 150 µA | 150 µA | 150 µA | 150 µA |
| Current - Supply (Max) | - | - | - | - | - |
| PSRR | 50dB (120Hz) | 50dB (120Hz) | 50dB (120Hz) | 50dB (120Hz) | 50dB (120Hz) |
| Control Features | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

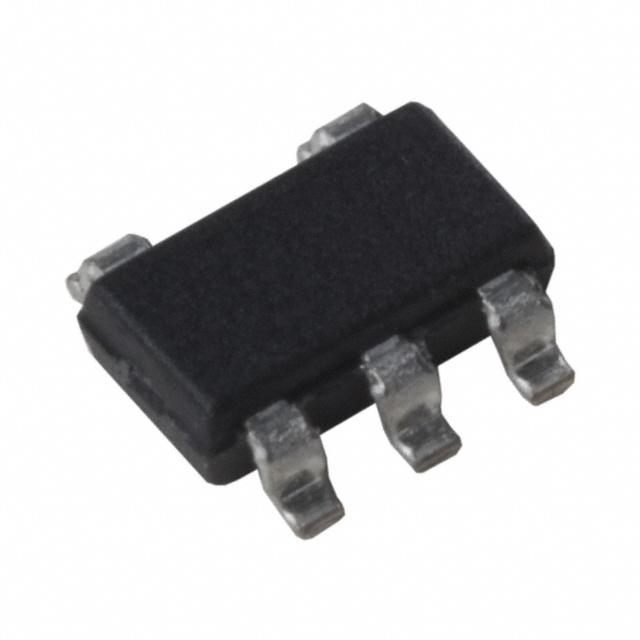

| Package / Case | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 |
