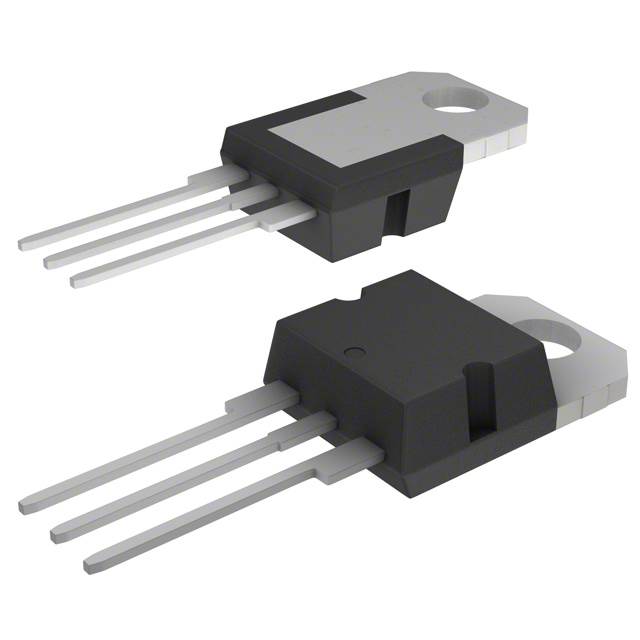

| Part Number | MIC5237-5.0YT | MIC5237-5.0YU | MIC5237-5.0BT |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Obsolete |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 16V | 16V | 16V |
| Voltage - Output (Min/Fixed) | 5V | 5V | 5V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | 0.7V @ 500mA | 0.7V @ 500mA | 0.7V @ 500mA |
| Current - Output | 500mA | 500mA | 500mA |
| Current - Quiescent (Iq) | - | - | - |
| Current - Supply (Max) | - | - | - |
| PSRR | 75dB (120Hz) | 75dB (120Hz) | 75dB (120Hz) |
| Control Features | - | - | - |
| Protection Features | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Through Hole | Surface Mount | Through Hole |
| Package / Case | TO-220-3 | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | TO-220-3 |
| Supplier Device Package | TO-220-3 | TO-263-3 | TO-220-3 |
