Please send RFQ , we will respond immediately.
| Part Number | MIC5219-3.6YML-TR | MIC5219-3.6YMM-TR | MIC5219-3.0YML-TR | MIC5219-3.3YML-TR | MIC5219-3.6YM5-TR |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 12V | 12V | 12V | 12V | 12V |
| Voltage - Output (Min/Fixed) | 3.6V | 3.6V | 3V | 3.3V | 3.6V |
| Voltage - Output (Max) | - | - | - | - | - |
| Voltage Dropout (Max) | 0.6V @ 500mA | 0.6V @ 500mA | 0.6V @ 500mA | 0.6V @ 500mA | 0.6V @ 500mA |
| Current - Output | 500mA | 500mA | 500mA | 500mA | 500mA |
| Current - Quiescent (Iq) | 8 µA | 8 µA | 8 µA | 8 µA | 8 µA |
| Current - Supply (Max) | - | - | - | - | - |
| PSRR | 75dB (120Hz) | 75dB (120Hz) | 75dB (120Hz) | 75dB (120Hz) | 75dB (120Hz) |
| Control Features | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

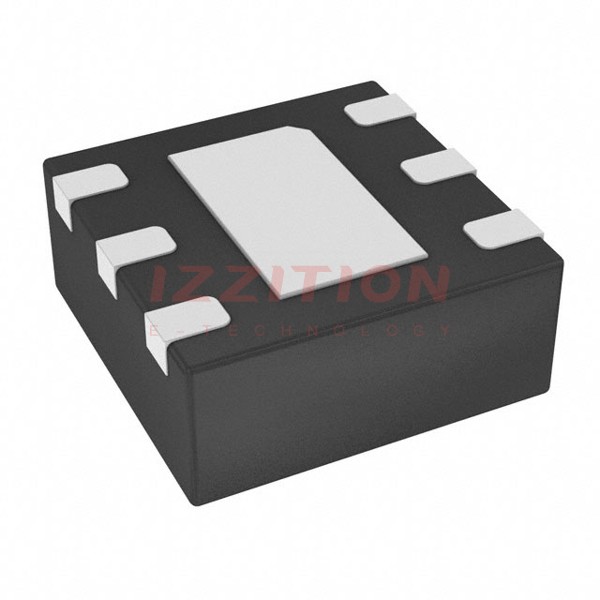

| Package / Case | 6-VDFN Exposed Pad, 6-MLF® | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 6-VDFN Exposed Pad, 6-MLF® | 6-VDFN Exposed Pad, 6-MLF® | SC-74A, SOT-753 |
| Supplier Device Package | 6-DFN (2x2) | 8-MSOP | 6-DFN (2x2) | 6-DFN (2x2) | SOT-23-5 |
