| Part Number | MIC5210-2.8YMM-TR | MIC5210-2.8BMM-TR |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Discontinued at Digi-Key |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 2 | 2 |
| Voltage - Input (Max) | 16V | 16V |
| Voltage - Output (Min/Fixed) | 2.8V, 2.8V | 2.8V, 2.8V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | 0.35V @ 150mA, 0.35V @ 150mA | 0.35V @ 150mA, 0.35V @ 150mA |
| Current - Output | 150mA, 150mA | 150mA, 150mA |
| Current - Quiescent (Iq) | 150 µA | 150 µA |
| Current - Supply (Max) | 2.5 mA | 2.5 mA |
| PSRR | 75dB (100Hz) | 75dB (100Hz) |
| Control Features | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount |

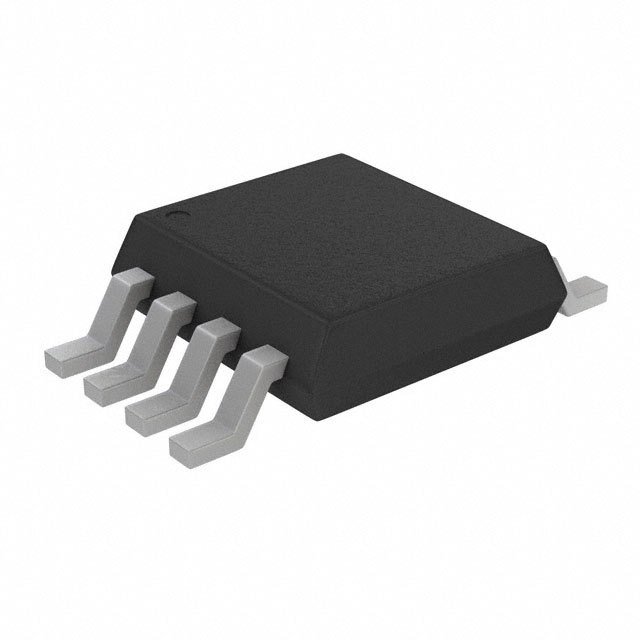

| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP | 8-MSOP |
