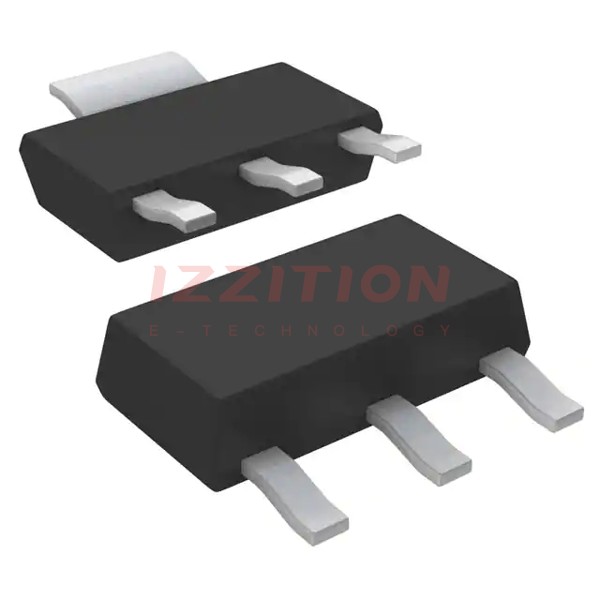

| Part Number | MIC5209-5.0BS TR | MIC5209-5.0BU TR | MIC5209-3.0BS TR |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 16V | 16V | 16V |
| Voltage - Output (Min/Fixed) | 5V | 5V | 3V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | 0.6V @ 500mA | 0.6V @ 500mA | 0.6V @ 500mA |
| Current - Output | 500mA | 500mA | 500mA |
| Current - Quiescent (Iq) | 170 µA | 170 µA | 170 µA |
| Current - Supply (Max) | 25 mA | 25 mA | 25 mA |
| PSRR | 75dB (120Hz) | 75dB (120Hz) | 75dB (120Hz) |
| Control Features | - | Enable | - |
| Protection Features | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-261-4, TO-261AA | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223-3 | TO-263-5 | SOT-223-3 |
