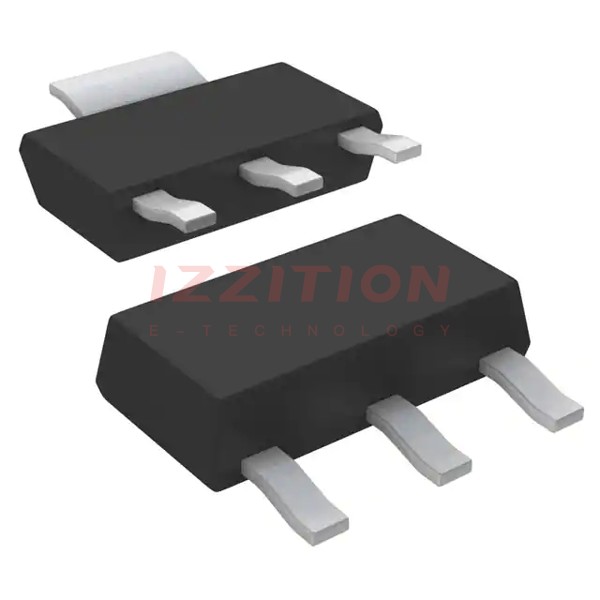

| Part Number | MIC5209-3.6BS TR | MIC5209-36BS TR | MIC5209-3.6BSTR | MIC5209-3.6BU TR | MIC5209-3.0BS TR | MIC5209-3.3BS TR |
|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Micrel Inc. | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | - | - | Positive | Positive | Positive |
| Output Type | Fixed | - | - | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | - | - | 1 | 1 | 1 |
| Voltage - Input (Max) | 16V | - | - | 16V | 16V | 16V |
| Voltage - Output (Min/Fixed) | 3.6V | - | - | 3.6V | 3V | 3.3V |
| Voltage - Output (Max) | - | - | - | - | - | - |
| Voltage Dropout (Max) | 0.6V @ 500mA | - | - | 0.6V @ 500mA | 0.6V @ 500mA | 0.6V @ 500mA |
| Current - Output | 500mA | - | - | 500mA | 500mA | 500mA |
| Current - Quiescent (Iq) | 170 µA | - | - | 170 µA | 170 µA | 170 µA |
| Current - Supply (Max) | 25 mA | - | - | 25 mA | 25 mA | 25 mA |
| PSRR | 75dB (120Hz) | - | - | 75dB (120Hz) | 75dB (120Hz) | 75dB (120Hz) |
| Control Features | - | - | - | Enable | - | - |
| Protection Features | Over Current, Over Temperature, Reverse Polarity | - | - | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C | - | - | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | - | - | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-261-4, TO-261AA | - | - | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | TO-261-4, TO-261AA | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223-3 | - | - | TO-263-5 | SOT-223-3 | SOT-223-3 |
