Please send RFQ , we will respond immediately.

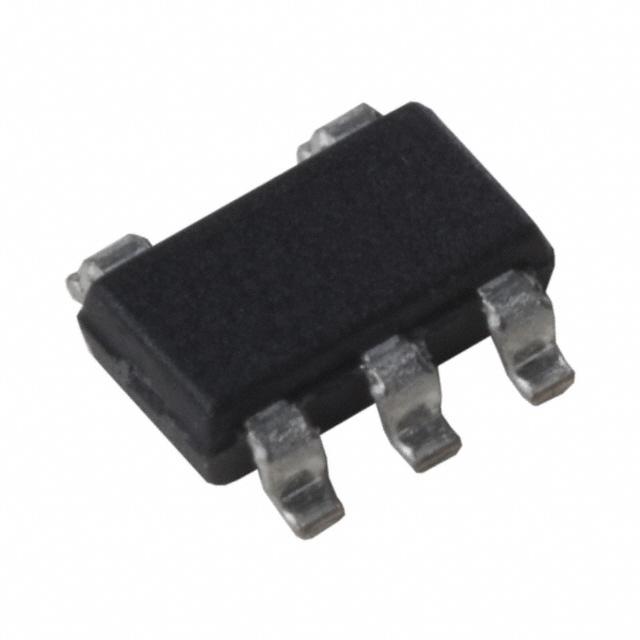

| Part Number | MIC5203-2.6YM5-TR | MIC5203-3.6YM5-TR | MIC5203-2.8YM5-TR | MIC5203-2.6BM5-TR | MIC5203-2.6YM4-TR |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Discontinued at Digi-Key | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 16V | 16V | 16V | 16V | 16V |
| Voltage - Output (Min/Fixed) | 2.6V | 3.6V | 2.8V | 2.6V | 2.6V |
| Voltage - Output (Max) | - | - | - | - | - |
| Voltage Dropout (Max) | 0.6V @ 80mA | 0.6V @ 80mA | 0.6V @ 80mA | 0.6V @ 80mA | 0.6V @ 80mA |
| Current - Output | 80mA | 80mA | 80mA | 80mA | 80mA |
| Current - Quiescent (Iq) | 750 µA | 750 µA | 750 µA | 750 µA | 750 µA |
| Current - Supply (Max) | 3 mA | 3 mA | 3 mA | 3 mA | 3 mA |
| PSRR | - | - | - | - | - |
| Control Features | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | TO-253-4, TO-253AA |
| Supplier Device Package | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-143 |
