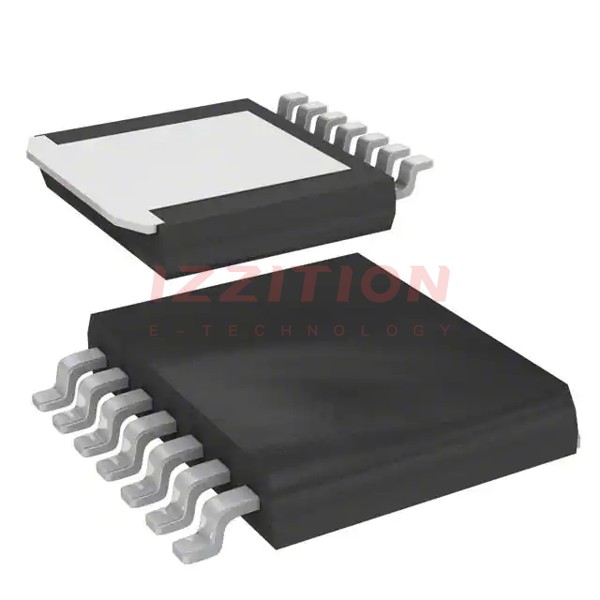

| Part Number | MIC49500-1.2WR | MIC49500-1.2WU | MIC49300-1.2WR |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Obsolete | Active |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 6V | 6V | 6.5V |
| Voltage - Output (Min/Fixed) | 1.2V | 1.2V | 1.2V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | 0.5V @ 5A | 0.5V @ 5A | 0.4V @ 3A |
| Current - Output | 5A | 5A | 3A |
| Current - Quiescent (Iq) | 90 mA | 90 mA | - |
| Current - Supply (Max) | 130 mA | 130 mA | - |
| PSRR | - | - | - |
| Control Features | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SPak-7 (7 leads + Tab) | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA | SPak-5 (5 leads + Tab) |
| Supplier Device Package | S-PAK-7 | TO-263-7 | S-PAK-5 |
