Please send RFQ , we will respond immediately.

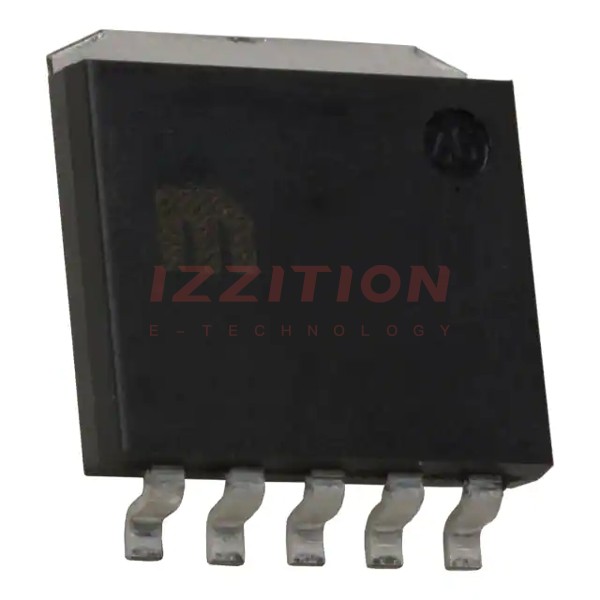

| Part Number | MIC49300-1.2WR-TR | MIC49300-1.5WR-TR | MIC49300-1.8WR-TR | MIC49500-1.2WR-TR |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 6.5V | 6.5V | 6.5V | 6V |
| Voltage - Output (Min/Fixed) | 1.2V | 1.5V | 1.8V | 1.2V |
| Voltage - Output (Max) | - | - | - | - |
| Voltage Dropout (Max) | 0.4V @ 3A | 0.4V @ 3A | 0.4V @ 3A | 0.5V @ 5A |
| Current - Output | 3A | 3A | 3A | 5A |
| Current - Quiescent (Iq) | - | - | - | 90 mA |
| Current - Supply (Max) | - | - | - | 130 mA |
| PSRR | - | - | - | - |
| Control Features | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SPak-5 (5 leads + Tab) | SPak-5 (5 leads + Tab) | SPak-5 (5 leads + Tab) | SPak-7 (7 leads + Tab) |
| Supplier Device Package | S-PAK-5 | S-PAK-5 | S-PAK-5 | S-PAK-7 |
