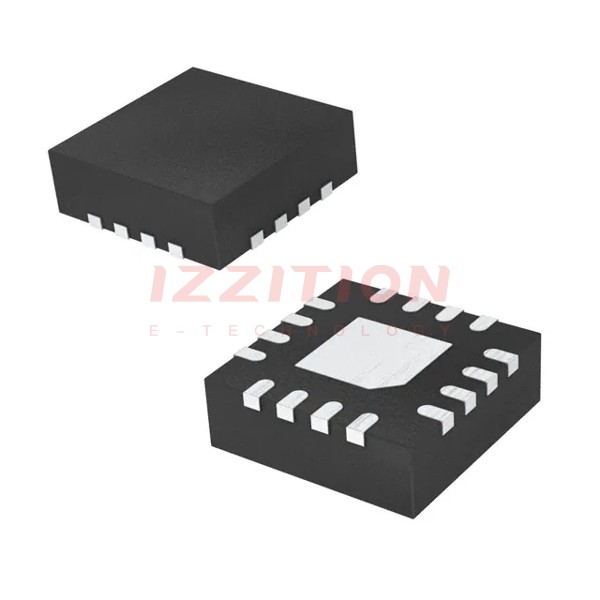

| Part Number | MIC4606-1YML-TR | MIC4606-2YML-TR | MIC4607-1YML-TR | MIC4606-1YML-T5 |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Discontinued at Digi-Key |
| Driven Configuration | Full-Bridge | Full-Bridge | Half-Bridge | Full-Bridge |
| Channel Type | Independent | Synchronous | 3-Phase | Independent |
| Number of Drivers | 4 | 4 | 6 | 4 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 5.25V ~ 16V | 5.25V ~ 16V | 5.5V ~ 16V | 5.25V ~ 16V |
| Logic Voltage - VIL, VIH | 0.8V, 2.2V | 0.8V, 2.2V | 0.8V, 2.2V | 0.8V, 2.2V |
| Current - Peak Output (Source, Sink) | 1A, 1A | 1A, 1A | 1A, 1A | 1A, 1A |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 108 V | 108 V | 85 V | 108 V |
| Rise / Fall Time (Typ) | 20ns, 20ns | 20ns, 20ns | 20ns, 20ns | 20ns, 20ns |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad | 16-VQFN Exposed Pad | 28-VFQFN Exposed Pad | 16-VQFN Exposed Pad |
| Supplier Device Package | 16-QFN (4x4) | 16-QFN (4x4) | 28-QFN (4x5) | 16-QFN (4x4) |
