| Part Number | MIC4604YMT-T5 | MIC4604YMT-TR | MIC4604YM-T5 |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Discontinued at Digi-Key | Active | Discontinued at Digi-Key |
| Driven Configuration | Half-Bridge | Half-Bridge | Half-Bridge |
| Channel Type | Independent | Independent | Independent |
| Number of Drivers | 2 | 2 | 2 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 5.25V ~ 16V | 5.25V ~ 16V | 5.25V ~ 16V |
| Logic Voltage - VIL, VIH | 0.8V, 2.2V | 0.8V, 2.2V | 0.8V, 2.2V |
| Current - Peak Output (Source, Sink) | 1.5A, 1A | 1.5A, 1A | 1.5A, 1A |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - | - | - |
| Rise / Fall Time (Typ) | 20ns, 20ns | 20ns, 20ns | 20ns, 20ns |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

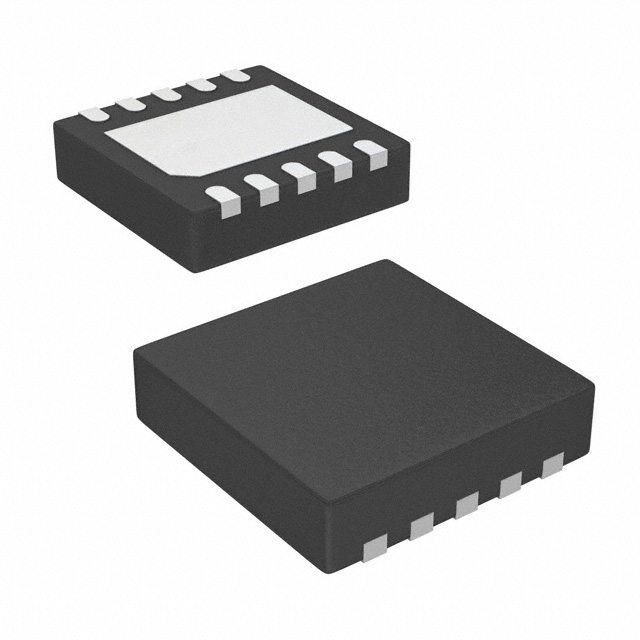

| Package / Case | 10-UFDFN Exposed Pad | 10-UFDFN Exposed Pad | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 10-TDFN (2.5x2.5) | 10-TDFN (2.5x2.5) | 8-SOIC |
