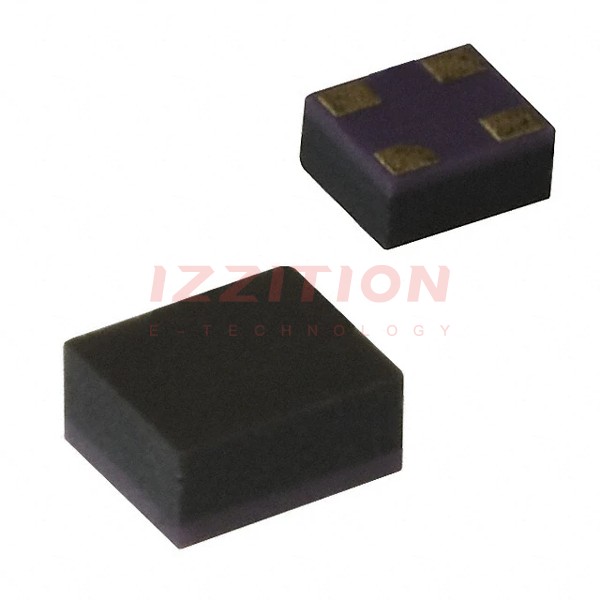

| Part Number | MIC4415YFT-TR | MIC4414YFT-TR | MIC4415YFT-T5 |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Discontinued at Digi-Key |
| Driven Configuration | Low-Side | Low-Side | Low-Side |
| Channel Type | Single | Single | Single |
| Number of Drivers | 1 | 1 | 1 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V | 4.5V ~ 18V | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 3V | 0.8V, 3V | 0.8V, 3V |
| Current - Peak Output (Source, Sink) | 1.5A, 1.5A | 1.5A, 1.5A | 1.5A, 1.5A |
| Input Type | Inverting | Non-Inverting | Inverting |
| High Side Voltage - Max (Bootstrap) | - | - | - |
| Rise / Fall Time (Typ) | 12ns, 12ns | 12ns, 12ns | 12ns, 12ns |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-UQFN | 4-UQFN | 4-UQFN |
| Supplier Device Package | 4-TQFN (1.2x1.2) | 4-TQFN (1.2x1.2) | 4-TQFN (1.2x1.2) |
