Please send RFQ , we will respond immediately.

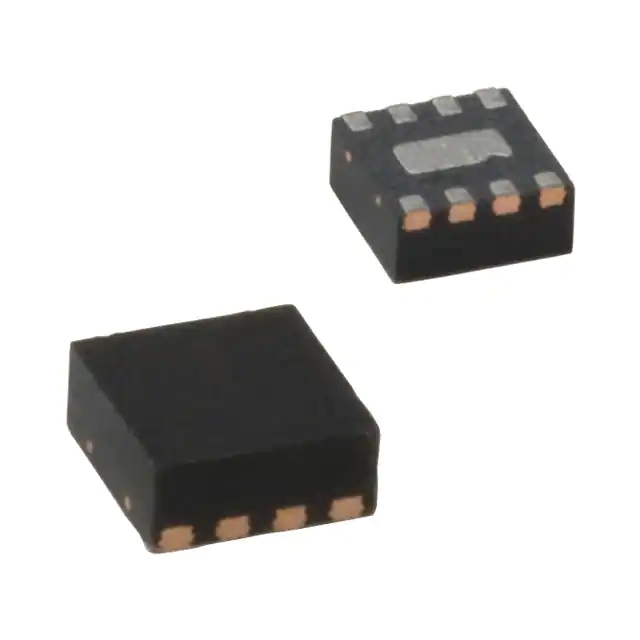

| Part Number | MIC4120YML-TR | MIC4128YML-TR | MIC4127YML-TR | MIC4129YML-TR | MIC4126YML-TR | MIC4123YML-TR | MIC4124YML-TR | MIC4125YML-TR | MIC4120YME-TR |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Driven Configuration | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side |
| Channel Type | Single | Independent | Independent | Single | Independent | Independent | Independent | Independent | Single |
| Number of Drivers | 1 | 2 | 2 | 1 | 2 | 2 | 2 | 2 | 1 |
| Gate Type | N-Channel, P-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel, P-Channel MOSFET | N-Channel MOSFET | N-Channel, P-Channel MOSFET | N-Channel, P-Channel MOSFET | N-Channel, P-Channel MOSFET | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 20V | 4.5V ~ 20V | 4.5V ~ 20V | 4.5V ~ 20V | 4.5V ~ 20V | 4.5V ~ 20V | 4.5V ~ 20V | 4.5V ~ 20V | 4.5V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V | 0.8V, 2.4V | 0.8V, 2.4V | 0.8V, 2.4V | 0.8V, 2.4V | 0.8V, 2.4V | 0.8V, 2.4V | 0.8V, 2.4V | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 6A, 6A | 1.5A, 1.5A | 1.5A, 1.5A | 6A, 6A | 1.5A, 1.5A | 3A, 3A | 3A, 3A | 3A, 3A | 6A, 6A |
| Input Type | Non-Inverting | Inverting, Non-Inverting | Non-Inverting | Inverting | Inverting | Inverting | Non-Inverting | Inverting, Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - | - | - | - | - | - | - | - | - |
| Rise / Fall Time (Typ) | 12ns, 13ns | 20ns, 18ns | 20ns, 18ns | 12ns, 13ns | 20ns, 18ns | 11ns, 11ns | 11ns, 11ns | 11ns, 11ns | 12ns, 13ns |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-VFDFN Exposed Pad, 8-MLF® | 8-VFDFN Exposed Pad | 8-VDFN Exposed Pad, 8-MLF® | 8-VFDFN Exposed Pad, 8-MLF® | 8-VFDFN Exposed Pad, 8-MLF® | 8-VDFN Exposed Pad | 8-VFDFN Exposed Pad, 8-MLF® | 8-VFDFN Exposed Pad, 8-MLF® | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-MLF® (2x2) | 8-VDFN (3x3) | 8-MLF® (3x3) | 8-MLF® (3x3) | 8-MLF® (2x2) | 8-DFN (4x4) | 8-MLF® (2x2) | 8-MLF® (2x2) | 8-SOIC-EP |
