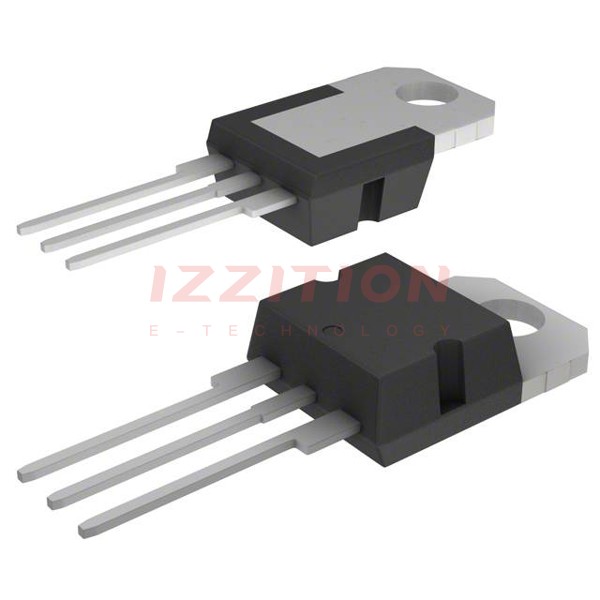

| Part Number | MIC39500-2.5WT | MIC39500-2.5WU | MIC39501-2.5WT | MIC39300-2.5WT | MIC39500-2.5BT |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 16V | 16V | 16V | 16V | 16V |
| Voltage - Output (Min/Fixed) | 2.5V | 2.5V | 2.5V | 2.5V | 2.5V |
| Voltage - Output (Max) | - | - | - | - | - |
| Voltage Dropout (Max) | 0.575V @ 5A | 0.575V @ 5A | 0.575V @ 5A | 0.55V @ 3A | 0.575V @ 5A |
| Current - Output | 5A | 5A | 5A | 3A | 5A |
| Current - Quiescent (Iq) | - | - | - | - | - |
| Current - Supply (Max) | - | - | - | - | - |
| PSRR | - | - | - | - | - |
| Control Features | - | - | Enable | - | - |
| Protection Features | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-3 | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | TO-220-5 | TO-220-3 | TO-220-3 |
| Supplier Device Package | TO-220-3 | TO-263-3 | TO-220-5 | TO-220-3 | TO-220-3 |
