Please send RFQ , we will respond immediately.

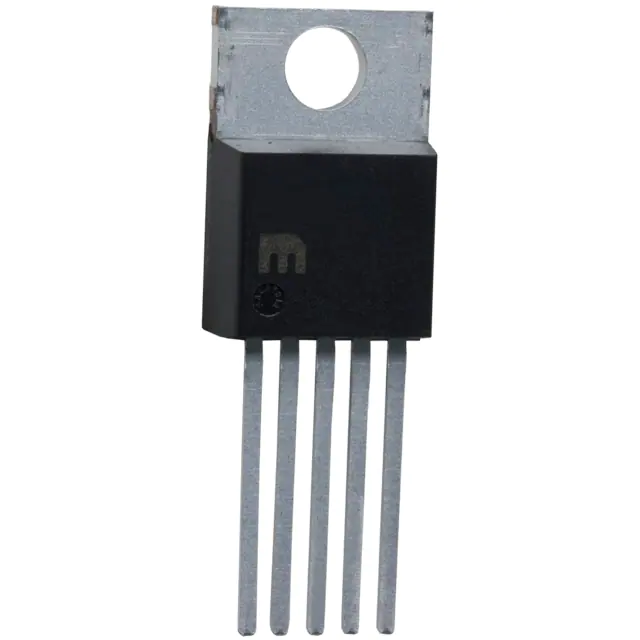

| Part Number | MIC29502WT | MIC29502WU | MIC29503WT | MIC29502BT |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Regulators | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 26V | 26V | 26V | 26V |
| Voltage - Output (Min/Fixed) | 1.25V | 1.25V | 1.25V | 1.25V |
| Voltage - Output (Max) | 25V | 25V | 25V | 25V |
| Voltage Dropout (Max) | 0.6V @ 5A | 0.6V @ 5A | 0.6V @ 5A | 0.6V @ 5A |
| Current - Output | 5A | 5A | 5A | 5A |
| Current - Quiescent (Iq) | - | - | - | - |
| Current - Supply (Max) | - | - | - | - |
| PSRR | - | - | - | - |
| Control Features | Enable | Enable | - | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Transient Voltage | Over Current, Over Temperature, Reverse Polarity, Transient Voltage | Over Current, Over Temperature, Reverse Polarity, Transient Voltage | Over Current, Over Temperature, Reverse Polarity, Transient Voltage |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole |
| Package / Case | TO-220-5 | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | TO-220-5 | TO-220-5 |
| Supplier Device Package | TO-220-5 | TO-263-5 | TO-220-5 | TO-220-5 |
