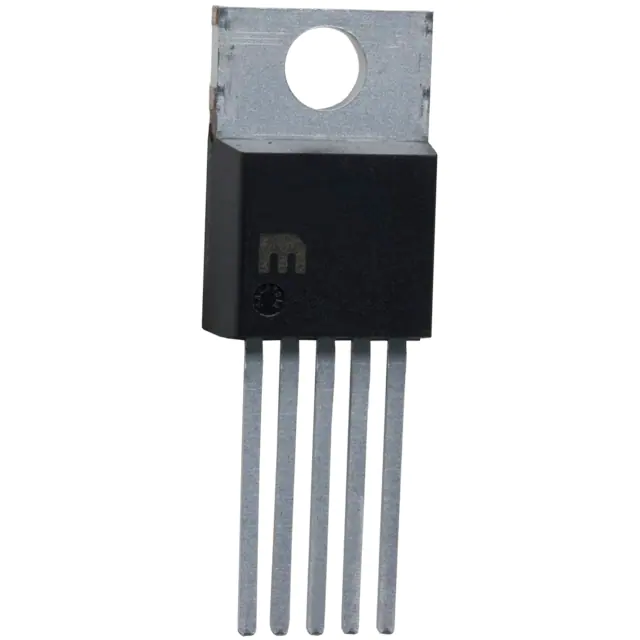

| Part Number | MIC29372WT | MIC29372WU | MIC29302WT | MIC29312WT | MIC29372BT |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 26V | 26V | 26V | 16V | 26V |
| Voltage - Output (Min/Fixed) | 1.24V | 1.24V | 1.25V | 1.24V | 1.24V |
| Voltage - Output (Max) | 26V | 26V | 25V | 15V | 26V |
| Voltage Dropout (Max) | 0.75V @ 750mA | 0.75V @ 750mA | 0.6V @ 3A | 1V @ 3A | 0.75V @ 750mA |
| Current - Output | 750mA | 750mA | 3A | 3A | 750mA |
| Current - Quiescent (Iq) | 300 µA | 300 µA | - | 20 mA | 300 µA |
| Current - Supply (Max) | 16 mA | 16 mA | - | 150 mA | 16 mA |
| PSRR | - | - | - | - | - |
| Control Features | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature, Reverse Polarity, Transient Voltage | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | 0°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-5 | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | TO-220-5 | TO-220-5 | TO-220-5 |
| Supplier Device Package | TO-220-5 | TO-263-5 | TO-220-5 | TO-220-5 | TO-220-5 |
