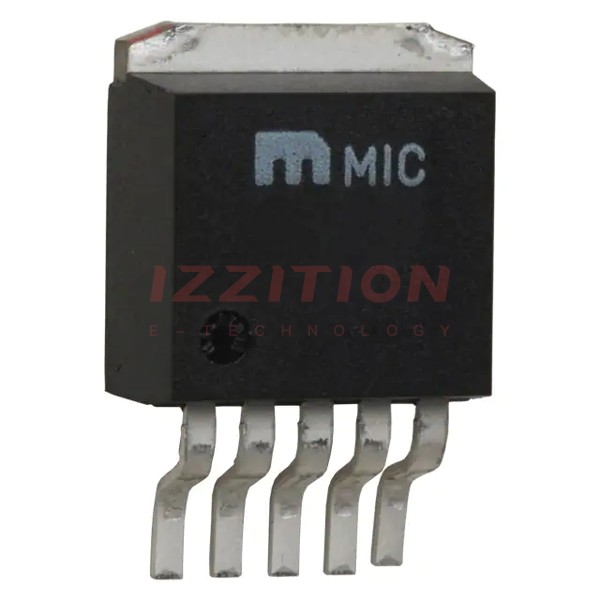

| Part Number | MIC29302AWU-TR | MIC29302WU-TR | MIC29302AWD-TR |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Adjustable | Adjustable | Adjustable |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 16V | 26V | 16V |
| Voltage - Output (Min/Fixed) | 1.24V | 1.25V | 1.24V |
| Voltage - Output (Max) | 15V | 25V | 15V |
| Voltage Dropout (Max) | 0.8V @ 3A | 0.6V @ 3A | 0.8V @ 3A |
| Current - Output | 3A | 3A | 3A |
| Current - Quiescent (Iq) | 20 mA | - | 20 mA |
| Current - Supply (Max) | 150 mA | - | 150 mA |
| PSRR | - | - | - |
| Control Features | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity, Transient Voltage | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | TO-252-6, DPak (5 Leads + Tab) |
| Supplier Device Package | TO-263-5 | TO-263-5 | TO-252-5 |
