Please send RFQ , we will respond immediately.

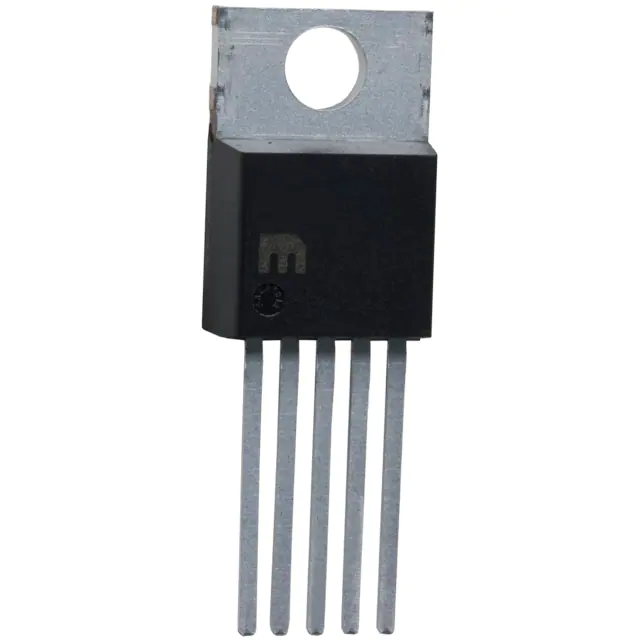

| Part Number | MIC29301-3.3WT | MIC29301-3.3WU | MIC29371-3.3WT | MIC29201-3.3WT | MIC29300-3.3WT | MIC29301-3.3BT |
|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 26V | 26V | 26V | 26V | 26V | 26V |
| Voltage - Output (Min/Fixed) | 3.3V | 3.3V | 3.3V | 3.3V | 3.3V | 3.3V |
| Voltage - Output (Max) | - | - | - | - | - | - |
| Voltage Dropout (Max) | 0.6V @ 3A | 0.6V @ 3A | - | 0.75V @ 400mA | 0.6V @ 3A | 0.6V @ 3A |
| Current - Output | 3A | 3A | 750mA | 400mA | 3A | 3A |
| Current - Quiescent (Iq) | - | - | 300 µA | 300 µA | - | - |
| Current - Supply (Max) | - | - | 16 mA | 12 mA | - | - |
| PSRR | - | - | - | - | - | - |
| Control Features | Enable | Enable | Enable | Enable | - | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Transient Voltage | Over Current, Over Temperature, Reverse Polarity, Transient Voltage | Over Current, Over Temperature | Load Dump, Over Current, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity, Transient Voltage | Over Current, Over Temperature, Reverse Polarity, Transient Voltage |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-5 | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | TO-220-5 | TO-220-5 | TO-220-3 | TO-220-5 |
| Supplier Device Package | TO-220-5 | TO-263-5 | TO-220-5 | TO-220-5 | TO-220-3 | TO-220-5 |
