Please send RFQ , we will respond immediately.
| Part Number | MIC24055YJL-TR | MIC24056YJL-TR | MIC24051YJL-TR | MIC24052YJL-TR | MIC24053YJL-TR | MIC24054YJL-TR |
|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 4.5V | 4.5V | 4.5V | 4.5V | 4.5V | 4.5V |
| Voltage - Input (Max) | 19V | 19V | 19V | 19V | 19V | 19V |
| Voltage - Output (Min/Fixed) | 0.8V | 0.8V | 0.8V | 0.8V | 0.8V | 0.8V |
| Voltage - Output (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Current - Output | 12A | 12A | 6A | 6A | 9A | 9A |
| Frequency - Switching | 600kHz | 600kHz | 600kHz | 600kHz | 600kHz | 600kHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

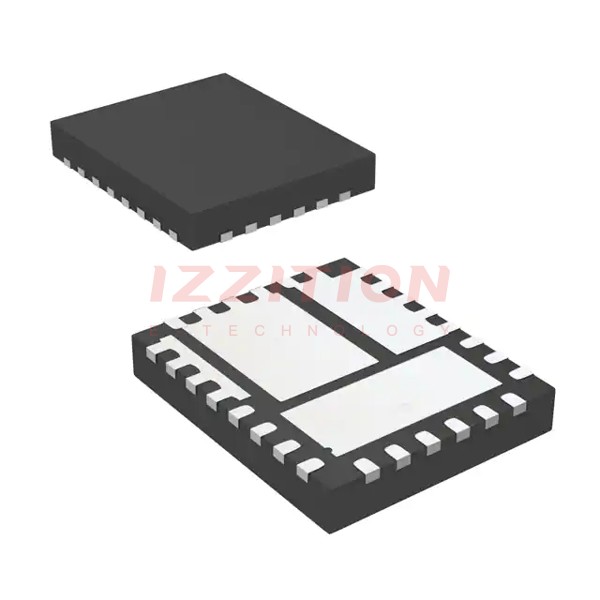

| Package / Case | 28-PowerVQFN | 28-PowerVQFN | 28-PowerVQFN | 28-PowerVQFN | 28-PowerVQFN | 28-PowerVQFN |
| Supplier Device Package | 28-QFN (5x6) | 28-QFN (5x6) | 28-QFN (5x6) | 28-QFN (5x6) | 28-QFN (5x6) | 28-QFN (5x6) |
