Please send RFQ , we will respond immediately.

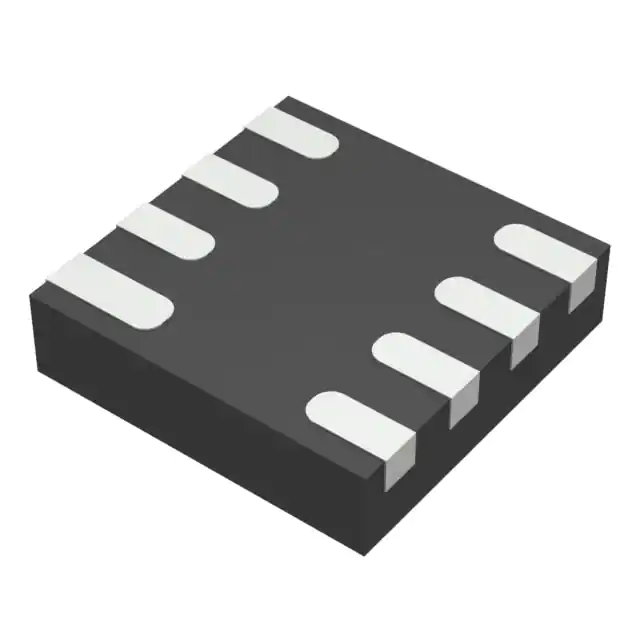

| Part Number | MIC23150-GYMT-TR | MIC23150-SYMT-TR | MIC23153-GYMT-TR | MIC23155-GYMT-TR | MIC23150-4YMT-TR | MIC23150-CYMT-TR |
|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck | Buck |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 2.7V | 2.7V | 2.7V | 2.7V | 2.7V | 2.7V |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.8V | 3.3V | 1.8V | 1.8V | 1.2V | 1V |
| Voltage - Output (Max) | - | - | - | - | - | - |
| Current - Output | 2A | 2A | 2A | 2A | 2A | 2A |
| Frequency - Switching | 4MHz | 4MHz | 4MHz | 3MHz | 4MHz | 4MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-UFDFN | 8-UFDFN | 10-UFDFN Exposed Pad, 10-TMLF® | 10-UFDFN Exposed Pad, 10-TMLF® | 8-UFDFN | 8-UFDFN |
| Supplier Device Package | 8-TDFN (2x2) | 8-TDFN (2x2) | 10-TMLF® (2.5x2.5) | 10-TMLF® (2.5x2.5) | 8-TDFN (2x2) | 8-TDFN (2x2) |
