Please send RFQ , we will respond immediately.
| Part Number | MIC2298-15YML-TR | MIC2299-15YML-TR | MIC2291-15YML-TR | MIC2292-15YML-TR | MIC2293-15YML-TR | MIC2297-15YML-TR |
|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | DC DC Regulator | DC DC Regulator | DC DC Regulator | DC DC Regulator | DC DC Regulator | DC DC Regulator |
| Topology | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) |
| Internal Switch(s) | Yes | Yes | Yes | Yes | Yes | Yes |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Supply (Min) | 2.5V | 2.5V | 2.5V | 2.5V | 2.5V | 2.5V |
| Voltage - Supply (Max) | 10V | 10V | 10V | 10V | 10V | 10V |
| Voltage - Output | 15V | 30V | 16V | - | - | - |
| Current - Output / Channel | 3.5A (Switch) | 3.5A (Switch) | 1.2A (Switch) | 750mA (Switch) | 750mA (Switch) | 1.2A (Switch) |
| Frequency | 1MHz | 2MHz | 1.2MHz | 1.6MHz | 2MHz | 600kHz |
| Dimming | Analog | Analog | Analog, PWM | Analog, PWM | Analog, PWM | PWM |
| Applications | Camera Flash | Backlight | Camera Flash | Backlight | Backlight | - |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

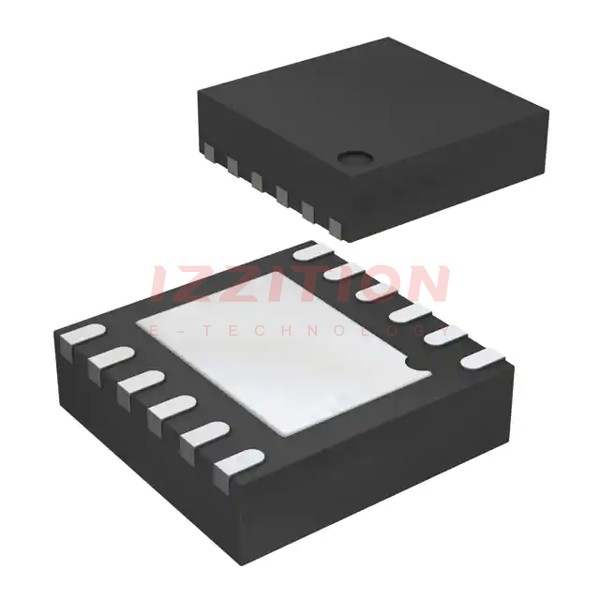

| Package / Case | 12-VFDFN Exposed Pad, 12-MLF® | 12-VFDFN Exposed Pad, 12-MLF® | 8-VFDFN Exposed Pad, 8-MLF® | 8-VFDFN Exposed Pad, 8-MLF® | 8-VFDFN Exposed Pad, 8-MLF® | 10-VFDFN Exposed Pad, 10-MLF® |
| Supplier Device Package | 12-MLF™ (3x3) | 12-MLF™ (3x3) | 8-MLF® (2x2) | 8-MLF® (2x2) | 8-MLF® (2x2) | 10-MLF® (3x3) |
