Please send RFQ , we will respond immediately.

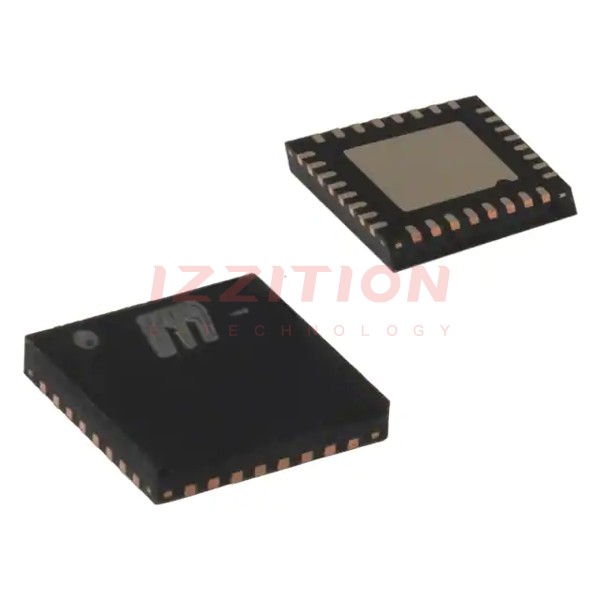

| Part Number | MIC22950YML-TR | MIC2295YML-TR | MIC2250YML-TR | MIC2290YML-TR |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active |
| Function | Step-Down | Step-Up | Step-Up | Step-Up |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Buck | Boost | Boost | Boost |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 2.6V | 2.5V | 2.5V | 2.5V |
| Voltage - Input (Max) | 5.5V | 10V | 5.5V | 10V |
| Voltage - Output (Min/Fixed) | 0.7V | 2.5V | 1.24V | 2.5V |
| Voltage - Output (Max) | 5.5V | 34V (Switch) | 32V | 34V (Switch) |
| Current - Output | 10A | 1.2A (Switch) | 2A (Switch) | 750mA (Switch) |
| Frequency - Switching | 400kHz ~ 2MHz | 1.2MHz | Up to 2.5MHz | 1.2MHz |
| Synchronous Rectifier | Yes | No | No | No |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad | 8-VFDFN Exposed Pad, 8-MLF® | 8-VFDFN Exposed Pad, 8-MLF® | 8-VFDFN Exposed Pad, 8-MLF® |
| Supplier Device Package | 32-QFN (5x5) | 8-MLF® (2x2) | 8-MLF® (2x2) | 8-MLF® (2x2) |
