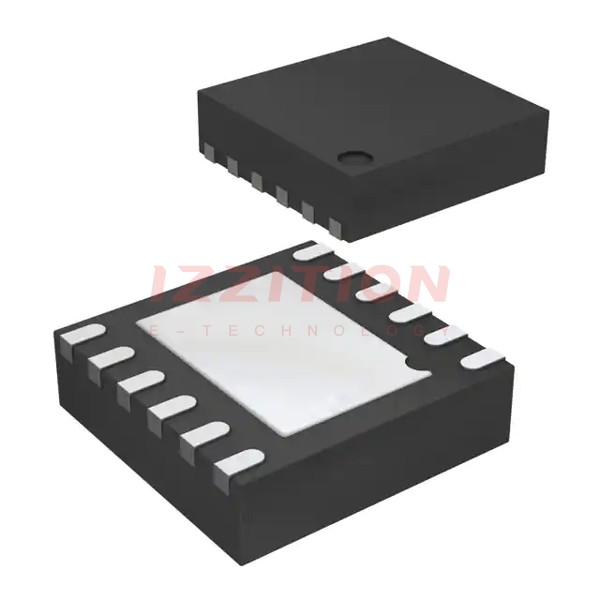

| Part Number | MIC2230-J4YML-TR | MIC2230-S4YML-TR | MIC2238-J4YML-TR | MIC2230-G4YML-TR |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Number of Outputs | 2 | 2 | 2 | 2 |
| Voltage - Input (Min) | 2.5V | 2.5V | 2.5V | 2.5V |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.2V, 2.5V | 1.2V, 3.3V | 1.2V, 2.5V | 1.2V, 1.8V |
| Voltage - Output (Max) | - | - | - | - |
| Current - Output | 800mA | 800mA | 800mA | 800mA |
| Frequency - Switching | 2.5MHz | 2.5MHz | 2.5MHz | 2.5MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 12-VFDFN Exposed Pad, 12-MLF® | 12-VFDFN Exposed Pad, 12-MLF® | 12-VFDFN Exposed Pad, 12-MLF® | 12-VFDFN Exposed Pad, 12-MLF® |
| Supplier Device Package | 12-MLF™ (4x4) | 12-MLF™ (4x4) | 12-MLF™ (4x4) | 12-MLF™ (4x4) |
