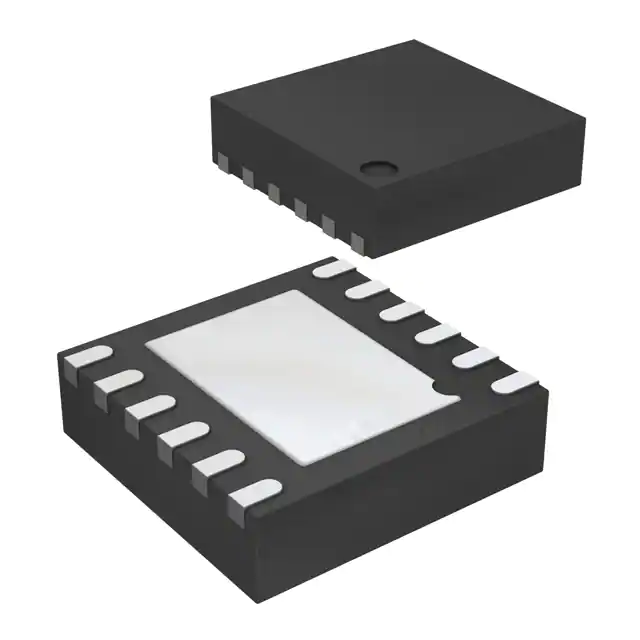

| Part Number | MIC22200YML-TR | MIC22700YML-TR | MIC22400YML-TR | MIC22600YML-TR | MIC22205YML-TR |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 2.6V | 2.6V | 2.6V | 2.6V | 2.9V |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 0.7V | 0.7V | 0.7V | 0.7V | 0.7V |
| Voltage - Output (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Current - Output | 2A | 7A | 4A | 6A | 2A |
| Frequency - Switching | 800kHz ~ 4MHz | 1MHz | 1MHz | 1MHz | 1MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 12-VFDFN Exposed Pad, 12-MLF® | 24-VFQFN Exposed Pad, 24-MLF® | 20-VFQFN Exposed Pad, 20-MLF® | 24-VFQFN Exposed Pad, 24-MLF® | 12-VFDFN Exposed Pad, 12-MLF® |
| Supplier Device Package | 12-MLF™ (4x4) | 24-MLF® (4x4) | 20-MLF® (3x4) | 24-MLF® (4x4) | 12-MLF™ (3x3) |
