Microchip Technology-MIC2215-AAAYML - PMIC - Voltage Regulators - Linear Product Specifications and Latest Quotes

Output Configuration:	Positive
Output Type:	Adjustable
Number of Regulators:	3
Voltage - Input (Max):	5.5V
Voltage - Output (Min/Fixed):	1.25V
Voltage - Output (Max):	5.225V
Voltage Dropout (Max):	0.275V @ 250mA, 0.275V @ 250mA, 0.275V @ 250mA
Current - Output:	250mA, 250mA, 250mA
Current - Quiescent (Iq):	150 µA
Current - Supply (Max):	550 µA
PSRR:	70dB ~ 45dB (100Hz ~ 1kHz)
Control Features:	Enable
Protection Features:	Over Current, Over Temperature
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	16-VQFN Exposed Pad, 16-MLF®
Supplier Device Package:	16-MLF® (4x4)

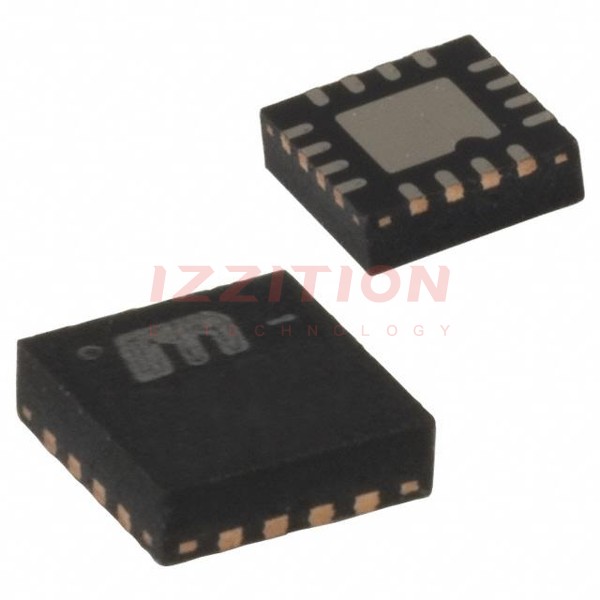

Microchip Technology MIC2215-AAAYML
