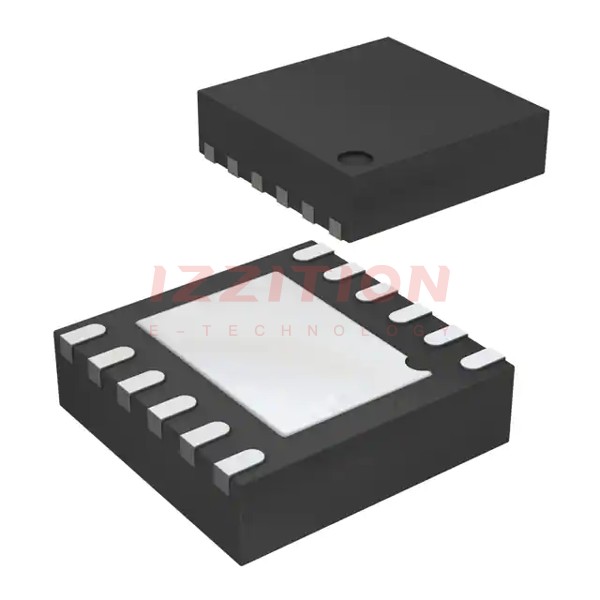

| Part Number | MIC2208YML-TR | MIC2288YML-TR | MIC2202YML-TR | MIC2203YML-TR | MIC2204YML-TR | MIC2205YML-TR | MIC2207YML-TR |
|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Active | Active | Active | Active | Active | Active |
| Function | Step-Down | Step-Up | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Boost | Buck | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 2.7V | 2.5V | 2.3V | 2.3V | 2.3V | 2.7V | 2.7V |
| Voltage - Input (Max) | 5.5V | 10V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1V | 2.5V | 0.5V | 0.5V | 1V | 1V | 1V |
| Voltage - Output (Max) | 5.5V | 34V (Switch) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Current - Output | 3A | 1.2A (Switch) | 600mA | 300mA | 600mA | 600mA | 3A |
| Frequency - Switching | 1MHz | 1.2MHz | 2MHz | 1MHz | 2MHz | 2MHz | 2MHz |
| Synchronous Rectifier | No | No | Yes | Yes | Yes | Yes | No |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 12-VFDFN Exposed Pad, 12-MLF® | 8-VFDFN Exposed Pad, 8-MLF® | 10-VFDFN Exposed Pad, 10-MLF® | 10-VFDFN Exposed Pad, 10-MLF® | 10-VFDFN Exposed Pad, 10-MLF® | 10-VFDFN Exposed Pad, 10-MLF® | 12-VFDFN Exposed Pad, 12-MLF® |
| Supplier Device Package | 12-MLF™ (4x4) | 8-MLF™ (2x2) | 10-MLF® (3x3) | 10-MLF® (3x3) | 10-MLF® (3x3) | 10-MLF® (3x3) | 12-MLF™ (4x4) |
