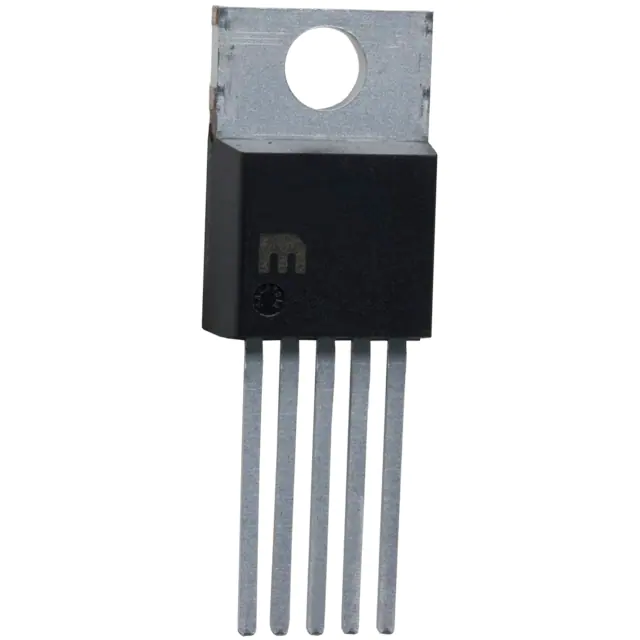

| Part Number | MIC2171WT | MIC2171WU | MIC2171BT |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Obsolete |
| Function | Step-Up, Step-Down, Step-Up/Step-Down | Step-Up, Step-Down, Step-Up/Step-Down | Step-Up, Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive or Negative, Isolation Capable | Positive or Negative, Isolation Capable | Positive or Negative, Isolation Capable |
| Topology | Buck, Boost, Cuk, Flyback, Forward Converter | Buck, Boost, Cuk, Flyback, Forward Converter | Buck, Boost, Cuk, Flyback, Forward Converter |
| Output Type | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 |
| Voltage - Input (Min) | 3V | 3V | 3V |
| Voltage - Input (Max) | 40V | 40V | 40V |
| Voltage - Output (Min/Fixed) | - | - | - |
| Voltage - Output (Max) | 65V (Switch) | 65V (Switch) | 65V (Switch) |
| Current - Output | 2.5A (Switch) | 2.5A (Switch) | 2.5A (Switch) |
| Frequency - Switching | 100kHz | 100kHz | 100kHz |
| Synchronous Rectifier | No | No | No |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole | Surface Mount | Through Hole |
| Package / Case | TO-220-5 | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | TO-220-5 |
| Supplier Device Package | TO-220-5 | TO-263-5 | TO-220-5 |
