MIC2156YML-TR
  • Share:

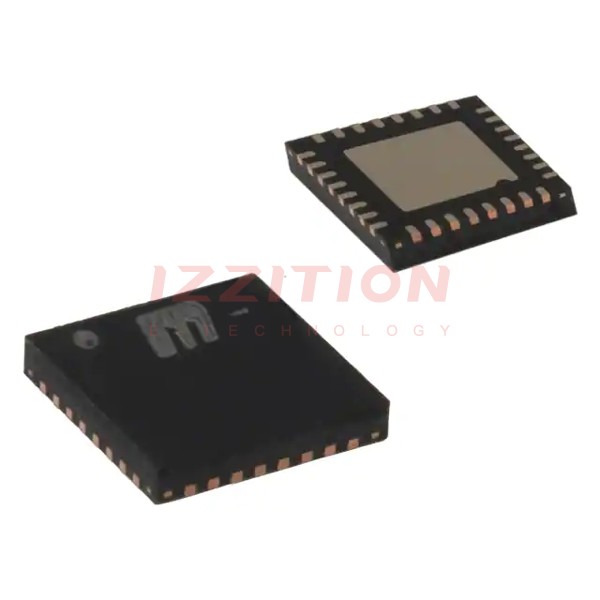

Microchip Technology MIC2156YML-TR

Manufacturer No:
MIC2156YML-TR
Manufacturer:
Microchip Technology
Package:
Tape & Reel (TR)
Datasheet:
MIC2156YML-TR Datasheet
ECAD Model:
-
Description:
IC REG CTRLR BUCK 32MLF
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Output Type:Transistor Driver
Function:Step-Down
Output Configuration:Positive
Topology:Buck
Number of Outputs:2
Output Phases:2
Voltage - Supply (Vcc/Vdd):4.5V ~ 14.5V
Frequency - Switching:300kHz
Duty Cycle (Max):80%
Synchronous Rectifier:Yes
Clock Sync:Yes
Serial Interfaces:-
Control Features:Current Limit, Enable, Power Good, Soft Start
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Package / Case:32-VFQFN Exposed Pad
Supplier Device Package:32-QFN (5x5)
0 Remaining View Similar

In Stock

-
566

Please send RFQ , we will respond immediately.

Similar Products

Part Number MIC2156YML-TR MIC2126YML-TR   MIC2150YML-TR   MIC2151YML-TR   MIC2155YML-TR
Manufacturer Microchip Technology Microchip Technology Microchip Technology Microchip Technology Microchip Technology
Product Status Obsolete Active Active Active Active
Output Type Transistor Driver Transistor Driver Transistor Driver Transistor Driver Transistor Driver
Function Step-Down Step-Down Step-Down Step-Down Step-Down
Output Configuration Positive Positive Positive Positive Positive
Topology Buck Buck Buck Buck Buck
Number of Outputs 2 1 2 2 2
Output Phases 2 1 2 2 2
Voltage - Supply (Vcc/Vdd) 4.5V ~ 14.5V 4.5V ~ 28V 4.5V ~ 14.5V 4.5V ~ 14.5V 4.5V ~ 14.5V
Frequency - Switching 300kHz 200kHz ~ 750kHz 500kHz 300kHz 500kHz
Duty Cycle (Max) 80% 85% 80% 83% 80%
Synchronous Rectifier Yes Yes Yes Yes Yes
Clock Sync Yes No No No Yes
Serial Interfaces - - - - -
Control Features Current Limit, Enable, Power Good, Soft Start Current Limit, Enable, Frequency Control, Power Good Current Limit, Enable, Power Good, Soft Start Current Limit, Enable, Power Good, Soft Start Current Limit, Enable, Power Good, Soft Start
Operating Temperature -40°C ~ 125°C (TJ) -40°C ~ 125°C (TJ) -40°C ~ 125°C (TJ) -40°C ~ 125°C (TJ) -40°C ~ 125°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case 32-VFQFN Exposed Pad 16-VFQFN Exposed Pad 24-VFQFN Exposed Pad, 24-MLF® 24-VFQFN Exposed Pad, 24-MLF® 32-VFQFN Exposed Pad
Supplier Device Package 32-QFN (5x5) 16-QFN (3x3) 24-MLF® (4x4) 24-MLF® (4x4) 32-QFN (5x5)
