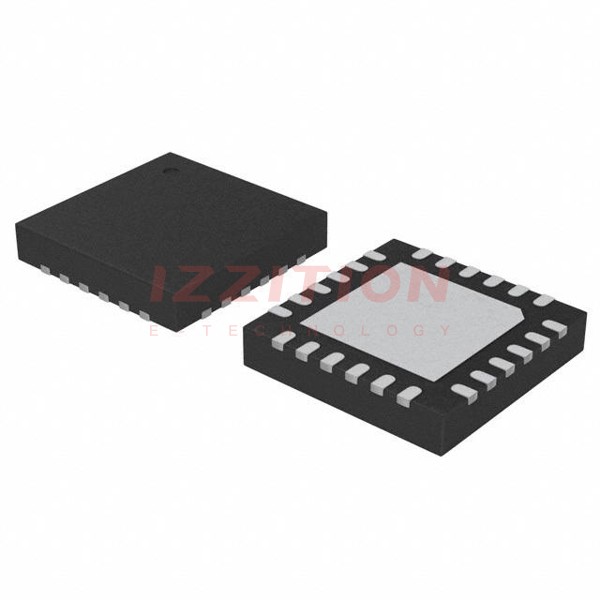

| Part Number | MIC2150YML-TR | MIC2151YML-TR | MIC2155YML-TR | MIC2156YML-TR |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Obsolete |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck |
| Number of Outputs | 2 | 2 | 2 | 2 |
| Output Phases | 2 | 2 | 2 | 2 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 14.5V | 4.5V ~ 14.5V | 4.5V ~ 14.5V | 4.5V ~ 14.5V |
| Frequency - Switching | 500kHz | 300kHz | 500kHz | 300kHz |
| Duty Cycle (Max) | 80% | 83% | 80% | 80% |
| Synchronous Rectifier | Yes | Yes | Yes | Yes |
| Clock Sync | No | No | Yes | Yes |
| Serial Interfaces | - | - | - | - |
| Control Features | Current Limit, Enable, Power Good, Soft Start | Current Limit, Enable, Power Good, Soft Start | Current Limit, Enable, Power Good, Soft Start | Current Limit, Enable, Power Good, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad, 24-MLF® | 24-VFQFN Exposed Pad, 24-MLF® | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad |
| Supplier Device Package | 24-MLF® (4x4) | 24-MLF® (4x4) | 32-QFN (5x5) | 32-QFN (5x5) |
