Please send RFQ , we will respond immediately.

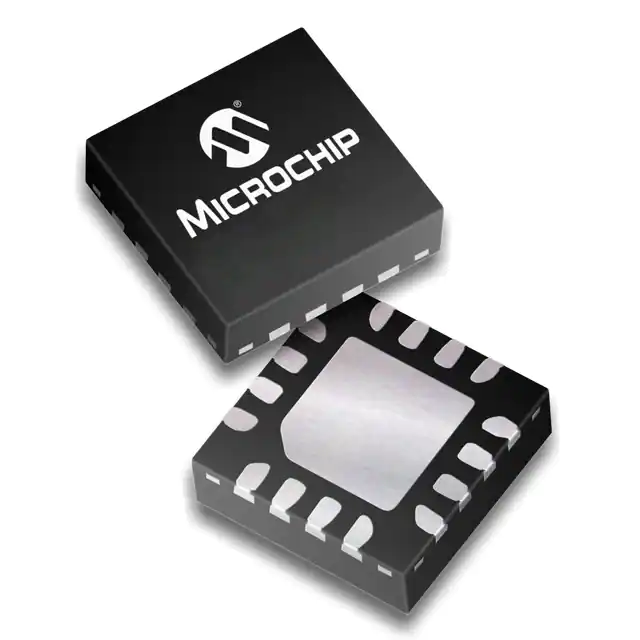

| Part Number | MD1813K6-G | MD1213K6-G | MD1810K6-G | MD1811K6-G | MD1812K6-G |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active |
| Driven Configuration | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge |
| Channel Type | Independent | Independent | Independent | Independent | Independent |
| Number of Drivers | 4 | 2 | 4 | 4 | 4 |
| Gate Type | N-Channel, P-Channel MOSFET | N-Channel, P-Channel MOSFET | N-Channel, P-Channel MOSFET | N-Channel, P-Channel MOSFET | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 13V | 4.5V ~ 13V | 5V ~ 12V | 5V ~ 12V | 4.5V ~ 13V |
| Logic Voltage - VIL, VIH | 0.3V, 1.7V | 0.3V, 1.2V | 0.3V, 1.7V | 0.3V, 1.7V | 0.3V, 1.7V |
| Current - Peak Output (Source, Sink) | 2A, 2A | 2A, 2A | 2A, 2A | 2A, 2A | 2A, 2A |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - | - | - | - | - |
| Rise / Fall Time (Typ) | 6ns, 6ns | 6ns, 6ns | 6ns, 6ns | 6ns, 6ns | 6ns, 6ns |
| Operating Temperature | -20°C ~ 125°C (TJ) | -20°C ~ 125°C (TJ) | -20°C ~ 125°C (TJ) | -20°C ~ 125°C (TJ) | -25°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad | 12-VQFN Exposed Pad | 16-VQFN Exposed Pad | 16-VQFN Exposed Pad | 16-VQFN Exposed Pad |
| Supplier Device Package | 16-QFN (4x4) | 12-QFN (4x4) | 16-QFN (4x4) | 16-QFN (4x4) | 16-QFN (4x4) |
